polo6n2g40

well the ally welder rang me today, parts were done :nod:

also the start of the final list of parts started trickling through - manual boost controller as this management has no N75 valve


barbed outlet for uprated pump


but for the main event; T-piece


inlet mani lug for cable


turbo to FMIC boost pipe



8mm take off for actuator


fitted up the inlet



trialed the boost pipe




T piece for coldside DV


Share this post


Link to post
Share on other sites
polo6n2g40

oh started it up too.

thanks for the comments chaps :-D

Share this post


Link to post
Share on other sites
Jake Ellis

Ahh Olly I'm so jealous of your car knowledge

Share this post


Link to post
Share on other sites
Frascano
Ahh Olly I'm so jealous of your car knowledge

Jakey boys in love <3

Share this post


Link to post
Share on other sites
Koop
a friend of mine asked me to put a 20v turbo in his mk2 golf gti 1.8 8V

Wish I had a friend like you :lol:

Nice work dude.

Share this post


Link to post
Share on other sites
polo6n2g40

haha thanks chaps :thumbsup:

looking forward to getting the last bits and the final fit and clean :unibrow:

Share this post


Link to post
Share on other sites
mikethebike

You'll have to record a video of it driving for us to watch :)

Share this post


Link to post
Share on other sites
polo6n2g40

hopefully most of the remaining parts will arrive today so can get it finished this weekend bar the down pipe that is on back order from Qpeng

more updates will follow this weekend :-D

Share this post


Link to post
Share on other sites
polo6n2g40

had more part to use that had come during the week

first up was the shifter tower 02j - 2001


'new' mk3 16v


new plastic linkage bracket


fitted


then was the water housing, the old one had died and the centre that locates the o ring crumbled away



a little more trimming on the fmic elbow for more clearance


fitted, just clears




the oil catch can mounting needed better fixing


i enlarged the hole to 9mm


and got my m6 rivnut


fitted


i fitted a second one and made a new bracket



mocked up the new run for the breather pipes but need to order some clips






Share this post


Link to post
Share on other sites
polo6n2g40

also made brake servo vac




packed away for the day


Share this post


Link to post
Share on other sites
damians1992

<3

Share this post


Link to post
Share on other sites
polo6n2g40

not a very productive weekend, rain cold and missing parts :-(

well DP arrived friday trial fitted bt no gasket :lol: so i text fitted bt there was a problem



obviously i'd rather the car had a full system to compliment the engine upgrade but it's not mine so i have to do the best with what i've got so assembled what bits i cold lay my hands on at short notice







when the DP comes back off to fit the gasket i'll put some slits in it and clamp up the centre section

other than that i've been making up loom sections to sort the little bits, temp sensor, rev counter, lambda loom and heated element, speed sensor loom and wired in the mk3 gti clocks. also started to tidy the dash loom but pics of soldering and wires are hardly worth taking pics of :-D

Share this post


Link to post
Share on other sites
polo6n2g40

been a while, been waiting on parts and weekends :lol:

got the gear linkage specific bolt / washer and nut


loom plugs for mk4 header tank level sensor / speed sensor and starter wire


and 'repair' wires


despite the weather decided i'd set about fitting the mk3 16v clocks to the mk2 dash

decided roughly where it needed to go, unfortunately the mk2 brackets were no good so made some new ones up from stainless




final 'cut'


the problem with the mk2 shroud is it covers parts of the mk3 warning lights and fuel and temp gauges

i cut grooves in the back


heated the plastic and flared the edges and pulled the bottom down



dash back in


Share this post


Link to post
Share on other sites
polo6n2g40

as it's christmas i thought i'd do some work

removed the last of the grime and waxoil off the drivers chassis leg and gave the bay a once over

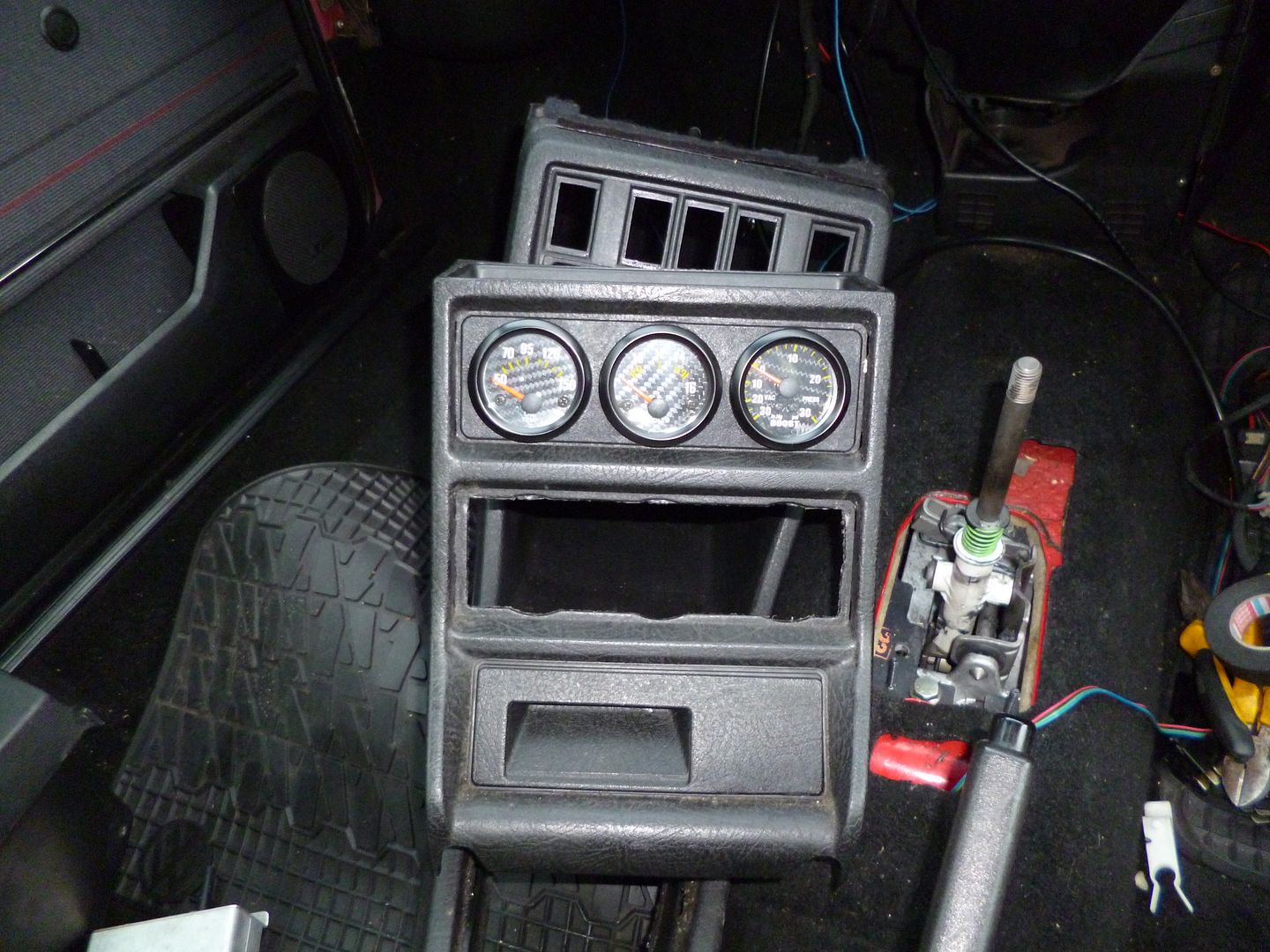

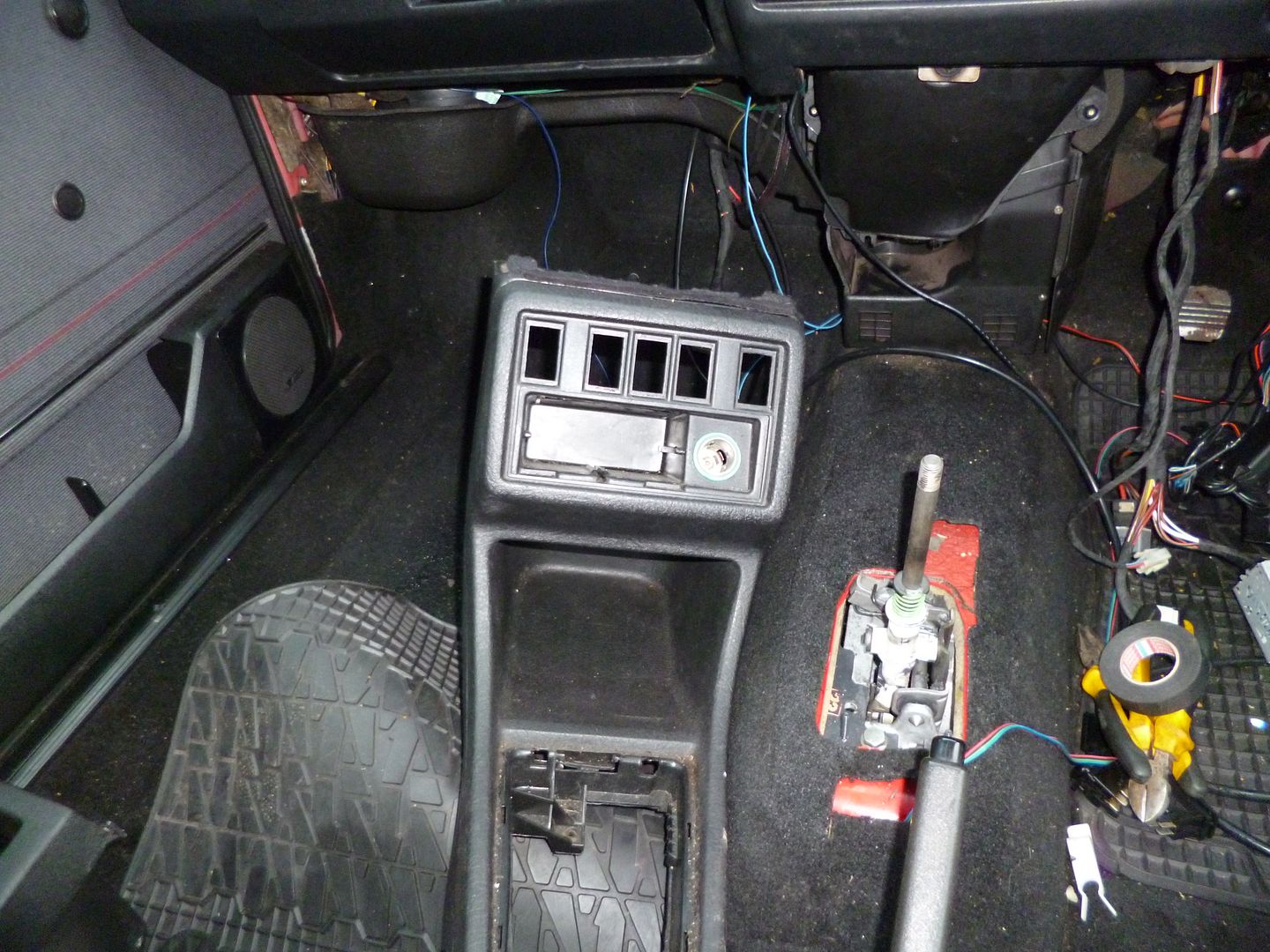

then turned my attention to the 'new' centre console



i had the cut the window switch plate out and fix it into the new section

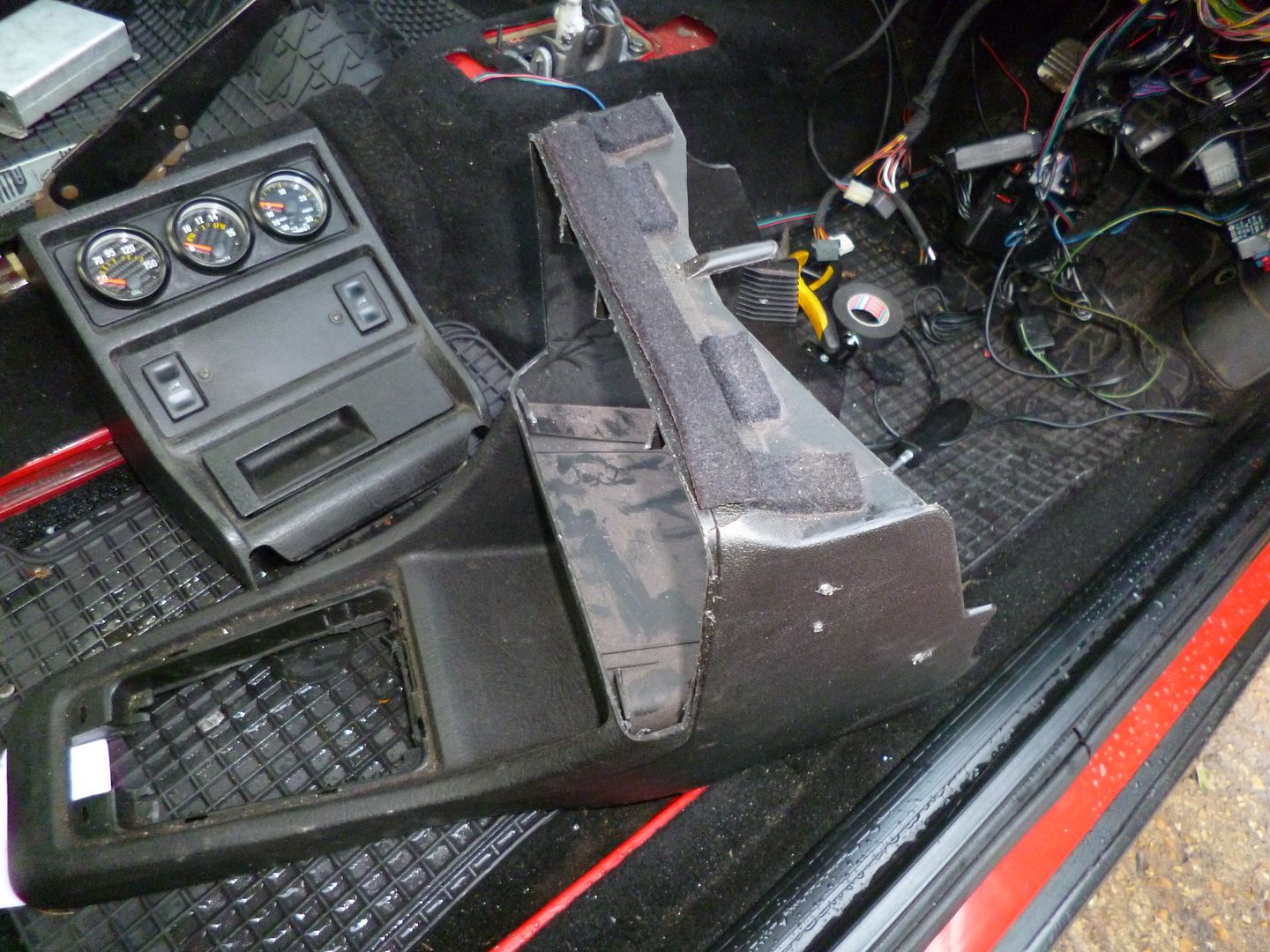

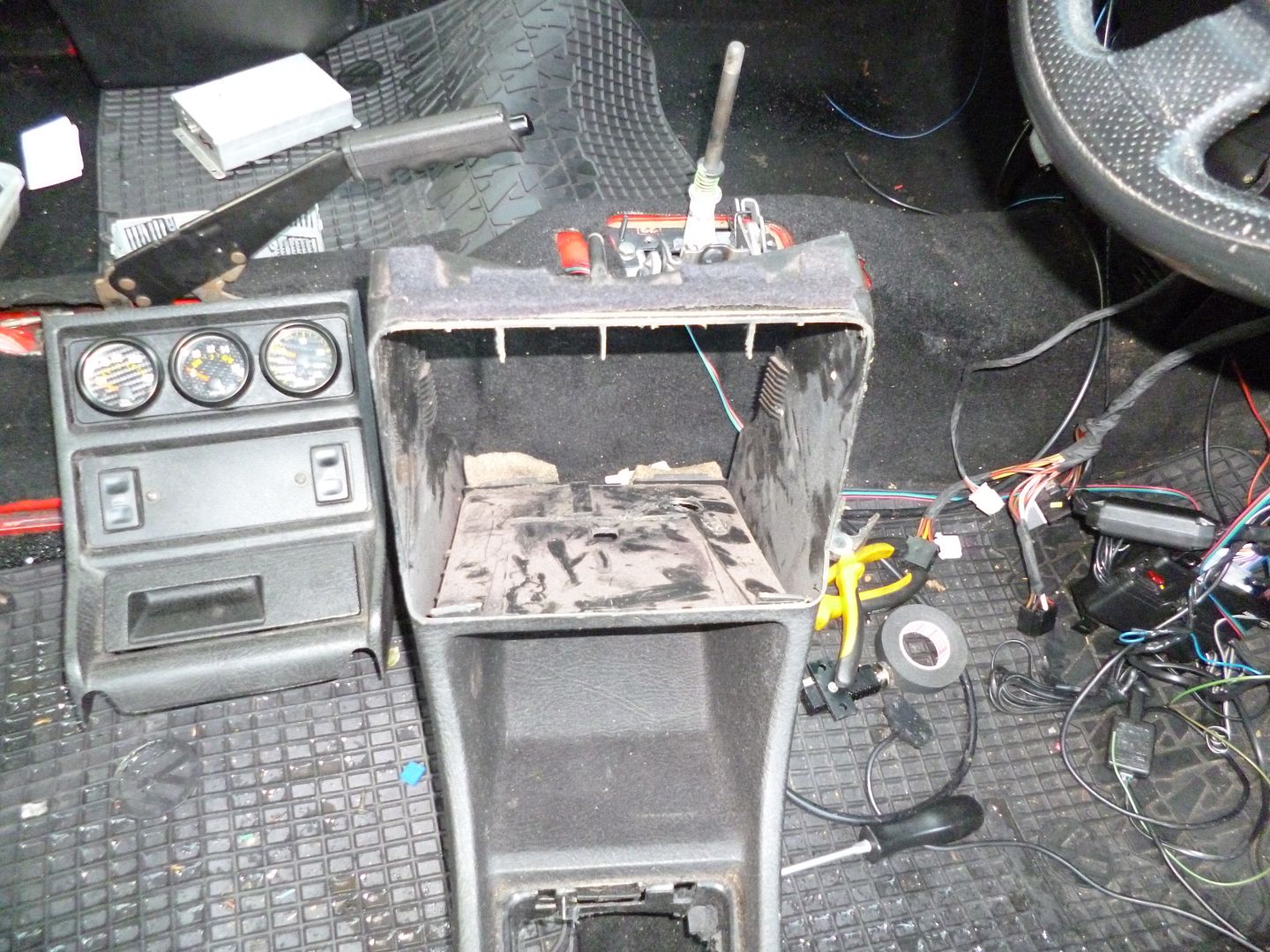

trim the front off the original console

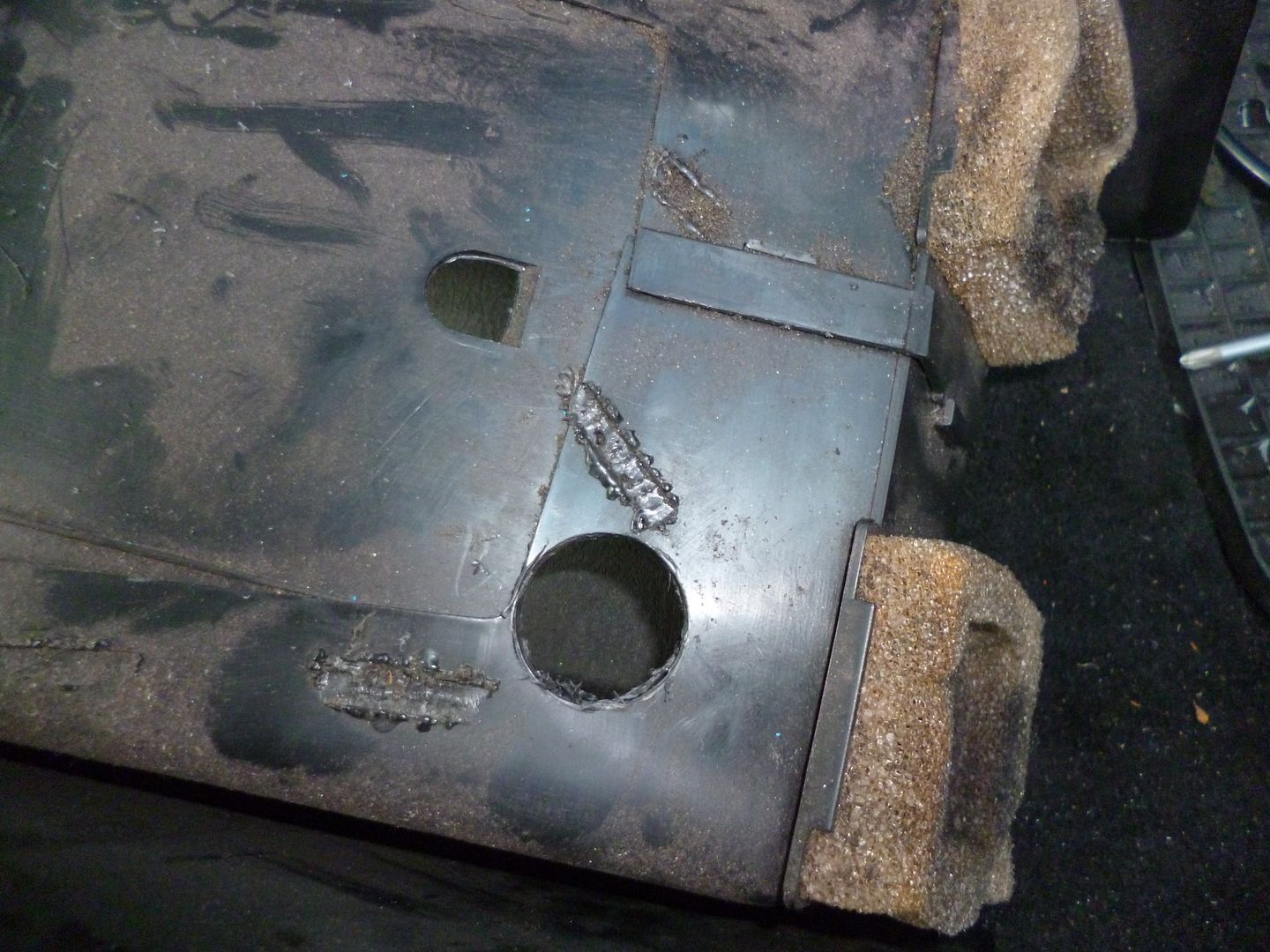

drilled hole for cig lighter loom

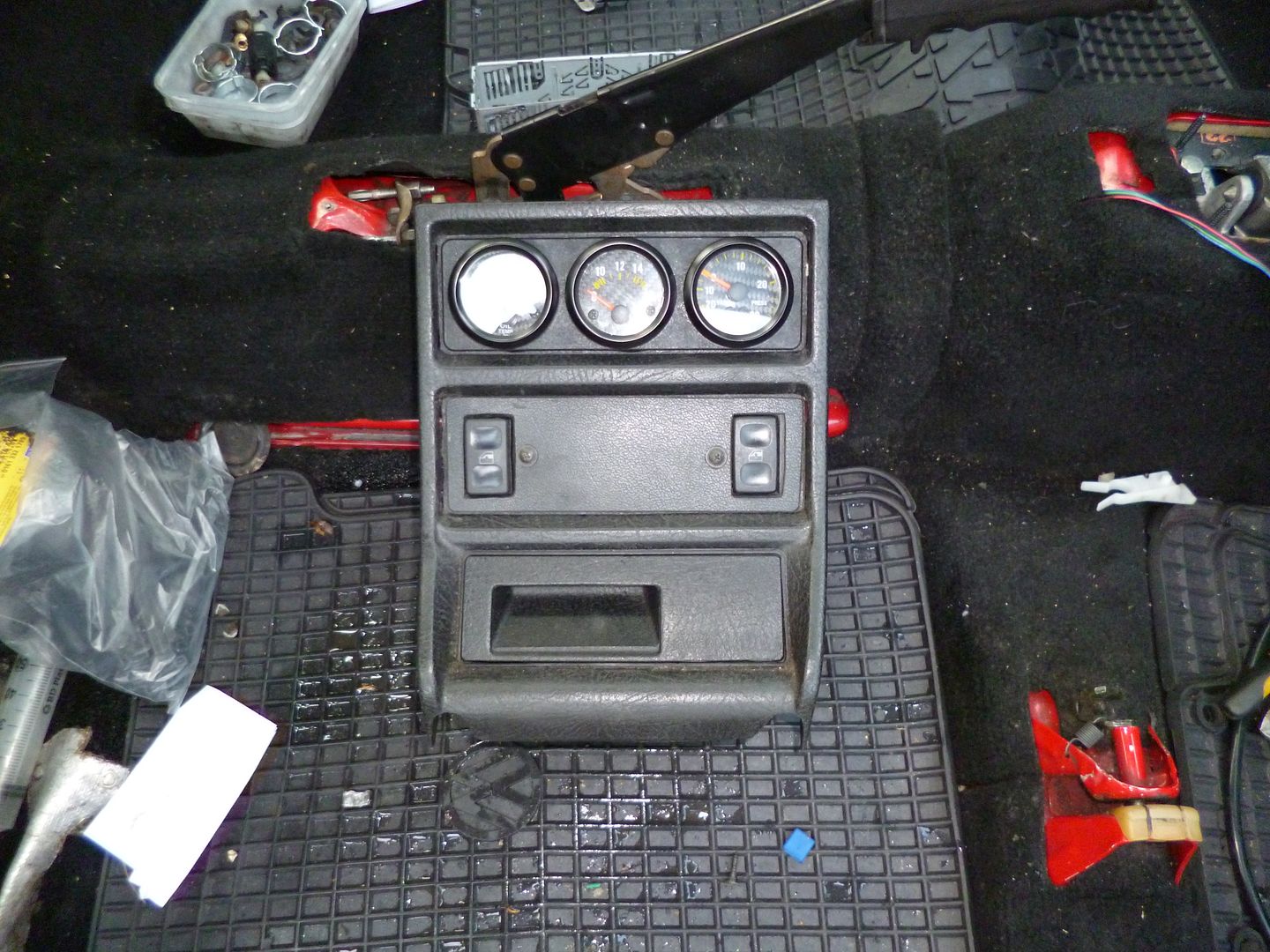

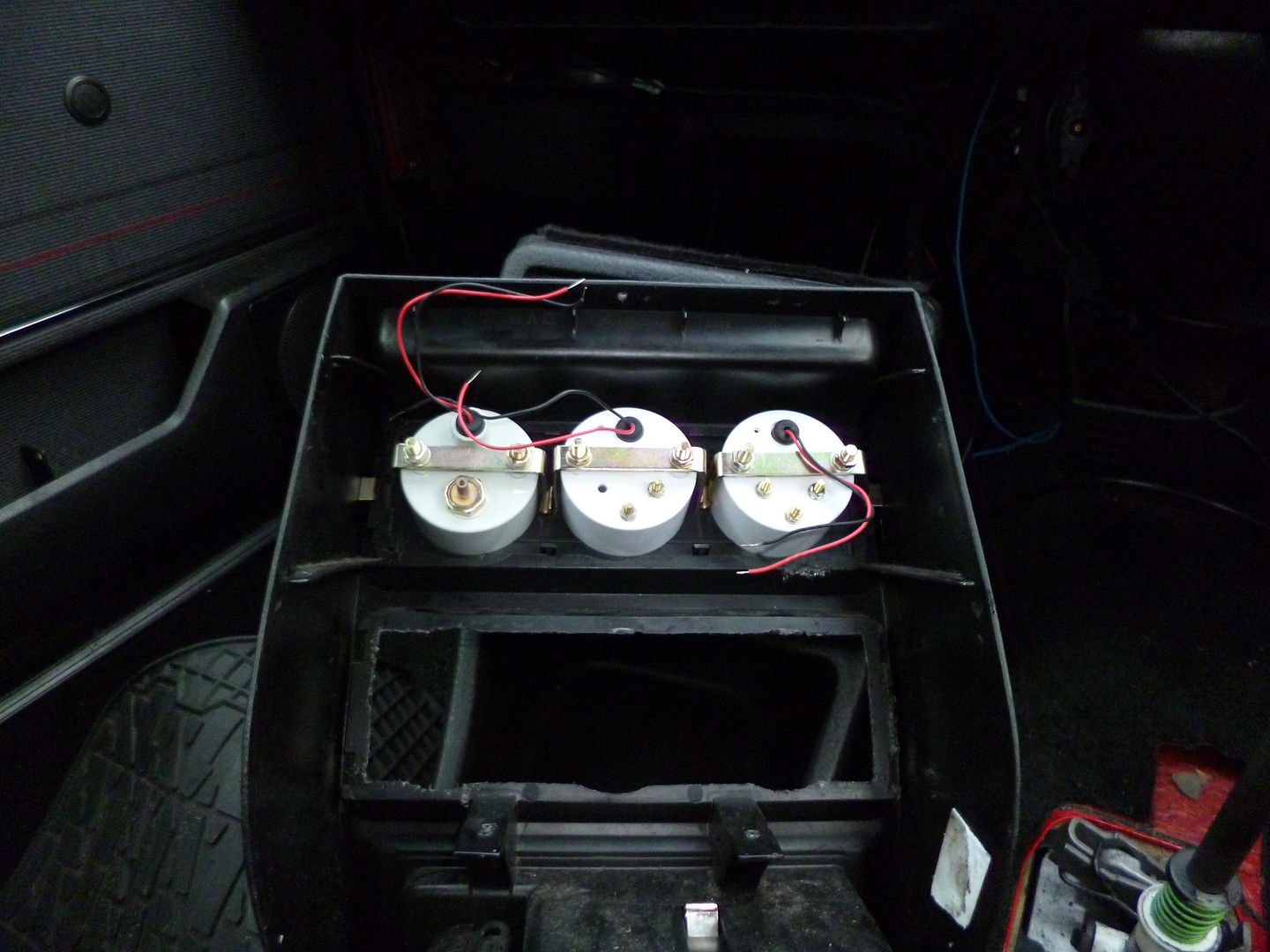

wired in the new boost / volt / oil gauges

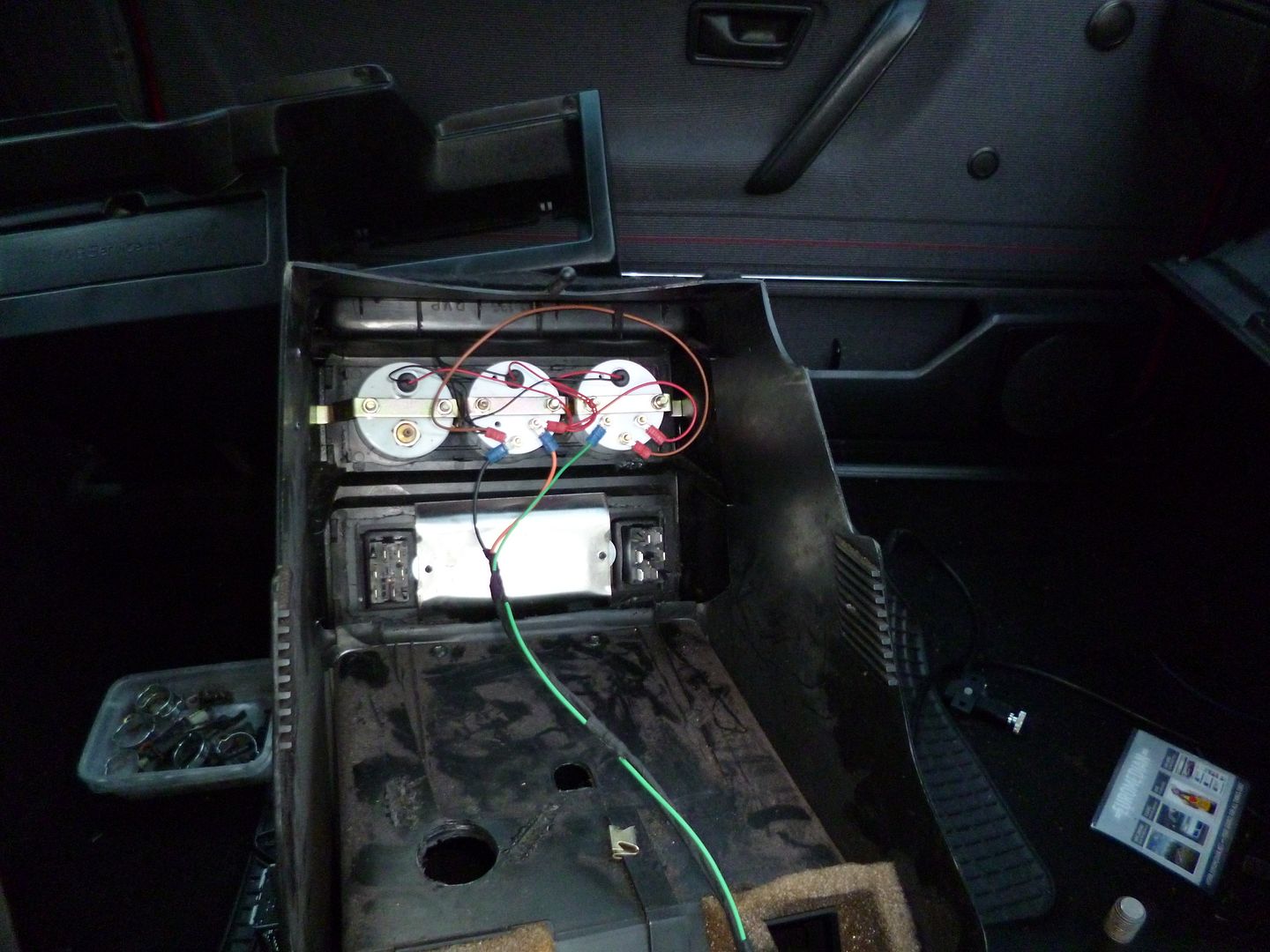

and made looms so an be unplugged individually



bolted the ecu to the tray under the glovebox so the serial port is accessable when it goes in for mapping



fitted the center console and wired in


Share this post


Link to post
Share on other sites
polovr6man

Brilliant, TOP work there mate, can't wait to see it finished

Share this post


Link to post
Share on other sites
polo6n2g40

todays task was to tackle the alarm 'wiring' if it had been my car i would have ripped it out and started a fresh with a new system, this job was not on the to-do list from my friend but i honestly couldn't force that jungle of wires back up abouve the dash tray and been happy about it

loads of lovey cheap black tape


and most wires had to or 3 joins and near enough all joins looked like this - all with black tape


chopped out the joins and resoldered all and insulated with proper heat shrink tube



then bound the looms in fabric tape


again de taped


chopped wired to length, soldered, shrink tubed and taped. all bound ready to be fixed up out of the way


secured


removed all this


just need access to 1 or 2 more wires then the tray can be refitted and screw the alarm port and program button in place

Share this post


Link to post
Share on other sites
polo6n2g40

thanks vr6man, shouldn't be too long, to do list is very short now :)

Share this post


Link to post
Share on other sites
MaxGT
thanks vr6man, shouldn't be too long, to do list is very short now :)

Awesome work dude, you really have a nack for doing this sort of thing,

Loved your old arosa!

Share this post


Link to post
Share on other sites
daveb142

Fantastic work and an interesting read! I like the fact you do things properly where most people cut corners! Keep up the good work :)

Share this post


Link to post
Share on other sites
polovr6man
Fantastic work and an interesting read! I like the fact you do things properly where most people cut corners! Keep up the good work :)

X2, my thoughts exactly

Share this post


Link to post
Share on other sites
polo6n2g40

thanks chaps, much appreciated :thumbsup:

well not many pics today, absolutely peed down all day. spent most of the day doing the niggly bits;

checked all nuts / bolts etc were tight

pressure bled brakes and clutch

drained and refreshed P/S fluid

put the dash under tray back together and column shroud

sorted out the brake light switch

dropped the down pipe back off to put some slits in it to clamp it to the centre section and fit new turbo - DP gasket


now the drivers side dash undertray was back on i could attatch the alarm port and MBC


it moved off the drive today under it's own power too, took it down the road - the tracking is a mile out and the splash guard was touching the disc, other than that the speedo wasn't working, double checked the wiring and checked the voltage on pin 1 + 3 and was getting 12v so is either speed sensor on the box or the clocks :(

couple of finishing bits left to do and fit some new arb links and should be all done :)

Share this post


Link to post
Share on other sites
polo6n2g40

as there's very little to do now i thought i'd tidy it up ready for the final parts

emptied all the old parts from the interior and gave it a good hoovering



then treated all the plastics


next was to give it a good jetwash in all the seals / shuts and wash n wax with meguirs


then treated all the plastics and rubbers
