Hi,

I had the Ambient Temperature sensor wire rust on me. I tried to cut the wire back and start again, but unfortunately its rusted quite a way back. The wires are wrapped up in a huge loom and don't really want to undo the loom to get 2 wires out.

Does anyone have the wiring diagram for the temp sensor? My plan was just to wire 2 new wires from the controller down to the sensor as i think this maybe easier.

Thanks in advance

Olie :)

Just fix the new wires to the outside of the loom with (preferably) cable ties or you COULD use tape.

Regards.

Just fix the new wires to the outside of the loom with (preferably) cable ties or you COULD use tape.

Regards.

Hi,

I'm not worried about get the new wires in the loom. What i want to do is run 2 new wires to the sensor but to do that i need to know where they go to.

Just fix the new wires to the outside of the loom with (preferably) cable ties or you COULD use tape.

Regards.

Hi,

I'm not worried about get the new wires in the loom. What i want to do is run 2 new wires to the sensor but to do that i need to know where they go to.

What colours are the wires? as I'm struggling to find the sensor on the wiring diagrams is the sensor for the A/C or the dash display?

Just fix the new wires to the outside of the loom with (preferably) cable ties or you COULD use tape.

Regards.

Hi,

I'm not worried about get the new wires in the loom. What i want to do is run 2 new wires to the sensor but to do that i need to know where they go to.

What colours are the wires? as I'm struggling to find the sensor on the wiring diagrams is the sensor for the A/C or the dash display?

One wire is brown & white and the other is brown & yellow. The sensor is used for the A/C. I haven't really been to bothered in fixing it at the moment, but as its getting warm i need to fix it.

None of the 9N3 diagrams show any of the sensors with those coloured wires, they only list Green & Green/white or puple or blue ??

What year is the car and engine code if possible?

None of the 9N3 diagrams show any of the sensors with those coloured wires, they only list Green & Green/white or puple or blue ??

What year is the car and engine code if possible?

Its a 55 plate car and the engine code is BNM

Olie

Finally found it !! Not on the A/C diagrams but on the one for the MFD

Finally found it !! Not on the A/C diagrams but on the one for the MFD

Thanks for that. I'll see what i can do at the weekend

Just need to wire it back to the bulkhead disconnects 6R & 6Q

Thanks for the info. Greatly appreciated. Managed to fix it now thank god. Especially in this weather!

On 03/07/2013 at 16:03, nige8021 said:

Finalmente encontrei!! Não nos diagramas A/C, mas no do MFD

http://i1117.photobucket.com/albums/k585/nige8021/Wiring%20Diagrams/9N3OATSensor_zps9f73ebff.jpg

the images don't work anymore

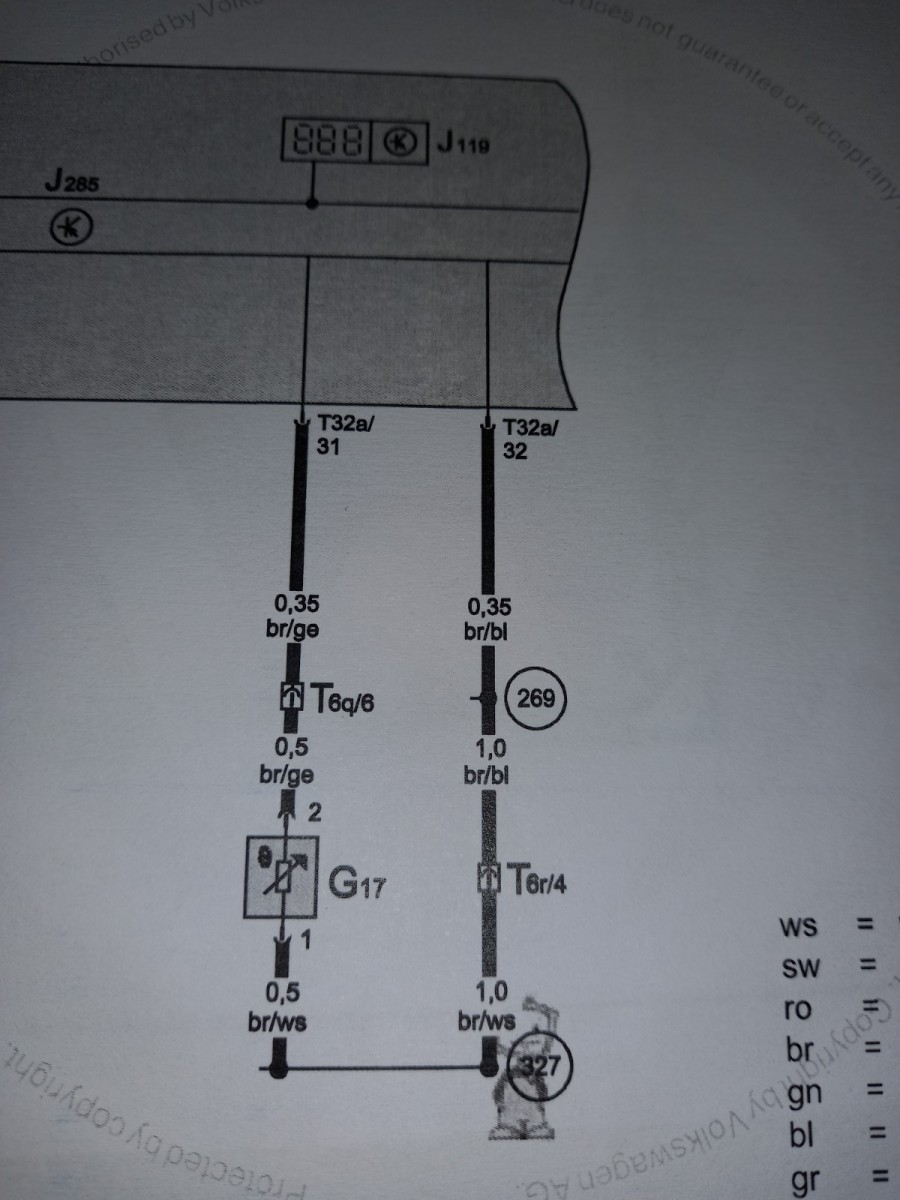

Not sure if this helps? G17 is the sensor, J285 is the instrument cluster circuitboard, T32a is the green connector on the back of it.:



On 13/12/2022 at 06:34, Pete1 said:

Não tem certeza se isso ajuda? G17 é o sensor, J285 é a placa de circuito do painel de instrumentos, T32a é o conector verde na parte de trás dele.:



Tem mais imagens sobre isso?
