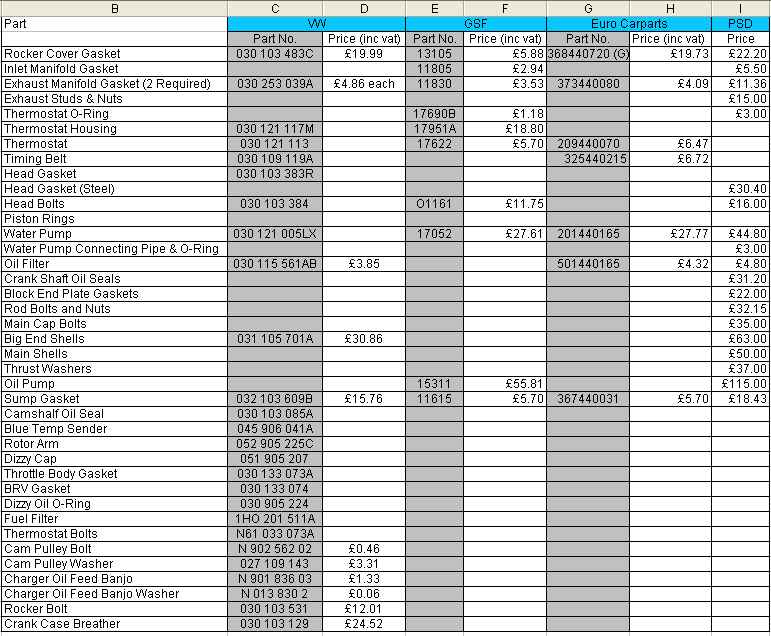

GSF/ Eurocarparts number for G40 cylinder block gasket set?? And a list of it's contents if possible

Cheers

last time i checked no where listed one or wanted to know.. gsf dont do full sets for small engine cars apparently

the bits are fairly cheap, you can get the sump/head gaskets from GSF, and one of the two block side flanges too from gsf. infact, you can get all the seals from there too for the block and head...

vw b 030 103 161 C £2.67 1 Crankshaft Gasket Flange Seal

vw (ask them) 1 throttle body gasket

11028 £3.75 1 rocker cover gasket

11029 £0.60 3 BUNG FOR CAM COVER BOLTS

11133B £15.60 1 Cylinder Head Gasket

11805 £2.50 1 INLET MANIFOLD GASKET

11740 £5.70 1 Cam-Shaft oil seal 47x10

11740 £5.70 1 Crankshaft oil seal 47x10

11830 £2.30 2 Exhaust Manifold Gasket

11734C £1.00 1 Crankshaft / Flywheel Flange Gasket

11734 £6.00 1 Crankshaft / Flywheel oil seal

thats all the ones i've got written down - cant remember any others

Oh right, i asked my local VW specialist aswell if complete bottom end gasket/seal sets are available, and he also confirmed that they werent.

How about a cylinder head set? There's a few on GSF but none that mention PY or G40, (not that i can see anyway!)

nah, you'l have to piece together the bits yourself and order the individual bits. all the gaskets etc are fairly cheap.

Cheers, I'm now in the process of sorting all the bits out indiviadually. Cant determine which valve stem oil seal i need though??

good luck with the stem seals. from etka all i could see is that i needed the 8mm ones.... so i bought those. when i did my head, it had already had them replaced once, and they were 7mm ones... so i used the ones i got with the 3F/GT head gasket set from a year ago that i still had sealed in a box.

best thing with the stem seals is to take the head apart and pull one off - and measure it or compare it to a new one.

Can i have the GSF part number for a standard G40 clutch set please?

Can i have the GSF part number for a standard G40 clutch set please?

they dont list or do one.

previously they searched and searched but couldnt find. last time i heard someone bought one from there it didnt fit... (dont know the number of this either though)

i got mine from http://www.clutch-specialists.co.uk

standard = £73.19+vat = http://www.clutch-specialists.co.uk/produc...ils.asp?id=9702

or

organic "uprated" = £96.58 = http://www.clutch-specialists.co.uk/produc...ils.asp?id=4689 (i got this one !)

they are based in leeds if you live anywhere round these parts, so you can order it and go collect. or buy online.

Ah right cheers anyway. I was looking into one of these CG motorsport clutches. Would you recommend one?

i got mine from http://www.clutch-specialists.co.uk

I was looking into one of these CG motorsport clutches. Would you recommend one?

its the same company. and yes i'd recommend! plus they look good (bright blue!)... until you fit the gearbox. lol

you get the full kit including release bearing from them too. workmanship is good on the uprated bit!

Part number for a G40 charger seals all of them and a standad manifold??

Part number for a G40 charger seals all of them and a standad manifold??

charger seals? vw say it is a "non servicable part" ... try www.g-laderseite.de

also bar-tek-tuning.de maybe

standard manifold? inlet or exhaust?

both oil pressure senders in the back of early G40 heads? And pressures of both?

Part number Description Price

867 941 723 Left Foglight lens 18.83

113 707 191 Bolt for above 2.13

N 011 670 16 Washer for above 0.19

867 919 235 Trailer Dash panel 42.46

3B7 955 681 Headlamp washer pump 25.14

867 201 543A Filter to pump fuel hose ("U" shaped reducer pipe) 11.82

533 201 511A Filter box ( plastic box next to the inline pump) 7.73

N 014 7067 Bottom pulley retaining bolts standard polo ( not G40) 0.14

861 512 131 A G40 Bump Stop 120mm 10.62

861 512 137 G40 protective pipe 66mm 4.04

861 511 271 Rear Axle hinge Bush 8.32

867 505 207 Rear Axle holder ( bit that bolts to the body) 18.97

867 609 757 Rear axle mounted with 2 bolts Handbrake Bracket 3.63

N 012 241 10 Washer for above 0.04

N 010 293 5 Bolt For above 0.15

867 609 773 Handbrake Bracket big the one the handbrake clips into 14.5

867 609 729 Handbrake Bracket small the one the handbrake clips into 2.28

867 609 734 Clip for holding the rear cable to the axle before going in the drum 0.47

N 908 773 01 Stub Axle Bolt 0.18

321 501 119A Concave Washer for above 0.26

867 411 309A 90 - 94 Anti Roll Bar (ARB) 43.83

867 411 313 Front ARB Rubbers 7.12

861 411 337B Front ARB Bracket - Pipe Clip (holder for above) 5.36

893 407 237 Driveshaft retaining bolts to gearbox housing 1

1J0 407 357 Spacer plate for above 0.49

171 698 447a G40 Brake Guide Bushes 6.66

171 615 221 G40 Guide Sleeve 2.84

N 044 755 3 G40 Short Caliper retaining bolts 0.2

N 014 715 3 G40 Long caliper retaining bolts M8 x 45 0

191 798 116A Repair kit for Gearshift lever to take the slack out it 10.95

191 827 577 C Boot handle primed version please not the black one Obsolite

443 857 113A Cylinder Locking Glove box 10.76

030 103 383R G40 Head gasket PY engine 15.36

030 115 561 AB 90 - 94 oil filter 3.28

030 121 117M NZ/GT/G40Thermostate housing 19.94

030 121 121 B Base for above 3.29

N 906 298 03 Screw that holds the 2 bits above together 0.18

N 012 226 5 Spring washer for above 0.04

038 121 119B Thermostat "O" seal 0.68

030 121 119 Seal to block from water housing 0.76

N 010 332 4 Bolt to block for retaining the above(below Disi) 0.38

N 012 241 10 Washer to block 0.04

052 121 091A G40 Water pump pipe gasket

030 133 073 A GT throttle body gasket 1.54

030 129 717D Inlet manifold gasket 4.21

030 253 039 A Exhaust manifold Gaskets 4.21

N 044 410 4 Stud for above 0.32

N 900 850 01 Exhaust nuts for above 0.16

871 145 851 Fan cover (tool tray)- comes with the "Ladeluftgekohlt" sticker 15.35 Obsolite

321 601 025H 091 Mk2 Golf GTi/rocco Steel Wheel "Manhattan" 6J x 14 ET38 (standard Silver) 28.54

871 601 171 polo fox Black Centre cap for above 3.16

3A0 601 139 Wheel nut 1.08

321 601 173 A 01C Black cap for wheel bolt 0.19

1C0 955 485 Passat Washer bottle Strainer for in windscreen bottle 1.27

701 955 200 90 - 94 polo headlamp washer relay 30.2

191 915 411 Battery Cover 8.02 Obsolite

034 133 847 Vacume inlet manifold Plug 5mm PY engine 0.61

871 145 875 G40 intercooler Strainer 19.81

1H0 201 511A 90 - 94 Fuel Filter next to the inline pump (the white/creamy square bit) 6.94

N 010 445 7 TCA to Strut retaining Bolt/pin 0.96

867 819 415 Cabin Fan/ECU/wiper motor water cover under bonnet rain guard 15.08

N 038 549 1 Front bumper side split rivit in wheelarch 0.07

867 853 653 G 01C Radiator Grill standard black. 21.76

867 853 601A 01C Black Grill Badge 4.76 Obsolite

N 903 521 01 Windscreen Washer bottle retaining plastic nuts 0.08

867 957 801 B RHD speedo cable 17.8

701 955 200 headlamp washer relay 30.2

034 133 847 Vacume inlet manifold Plug 5mm PY engine 0.61

871 145 875 G40 intercooler Strainer 19.81

1H0 201 511A 90 - 94 Fuel Filter next to the inline pump 6.94

N 010 445 7 TCA to Strut retaining Bolt/pin 0.96

867 819 415 Cabin Fan/ECU water cover under bonnet rain guard 15.08

N 038 549 1 Front bumper side split rivit in wheelarch 0.07

867 853 653 G 01C Radiator Grill standard black. 21.76

867 853 601A 01C Black Grill Badge (may need colour code) 4.76

N 903 521 01 Windscreen Washer bottle retaining plastic nuts 0.08

867 957 801 B RHD speedo cable 17.8

Part number Description QTY Price

030 109 123 B Belt Cover top 1 15.65

N903 103 01 Radiator Fan cover Bolt 4 0.27

867 201 253 A Fuel Tank Rubber Sleeve 1 9.87

867 201 971 Fuel Tank Double Grommet 1 1.86

861 298 121 1 set of packers for fuel tank 1 1.22

121 201 256 Rubber Mount For Fuel Carrier 3 4.24

N908 183 01 Rear Cylinder retaining bolt 6 0.28

867 863 835 A Under Bonnet Insulation 1 70.04

867 863 849 A Clips for above 10 0.68

N010 237 6 Load sensor valve nuts 8 0.23

N900 317 01 Snap nut load sensor valve 6 0.76

N010 212 26 Bolt for above 6 0.28

N010 233 6 Long Bolt for above 2 0.51

N011 67016 Washer 4 0.49

867 615 311 B Front brake splash plate Left 1 13.64

867 615 312 B " " " " " " " " " " " " " " " " right 1 13.64

N905 293 01 Bolt for splash plate 6 0.15

N014 226 5 Counter Sunk Screw disk retainer 2 0.12

867 803 785 Exhaust Hanger Repair Panel 1 9.23

871 121 284B G40 Intercooler Duct panel 1 6.23

871 145 643 G40 Intercooler Top mount to front bar (metal bit) 1 6.87

B 056 129 620 Spi Air Filter for the Saloon 1 9.63

4D0 611 715B Brake Hose Retaining Spring 6 0.27

N 906 349 01 Wheel arch pop rivet for the saloon 14 0.33

Edited 7 May, 200917 yr by genesisGT

part number for the intercooler??
