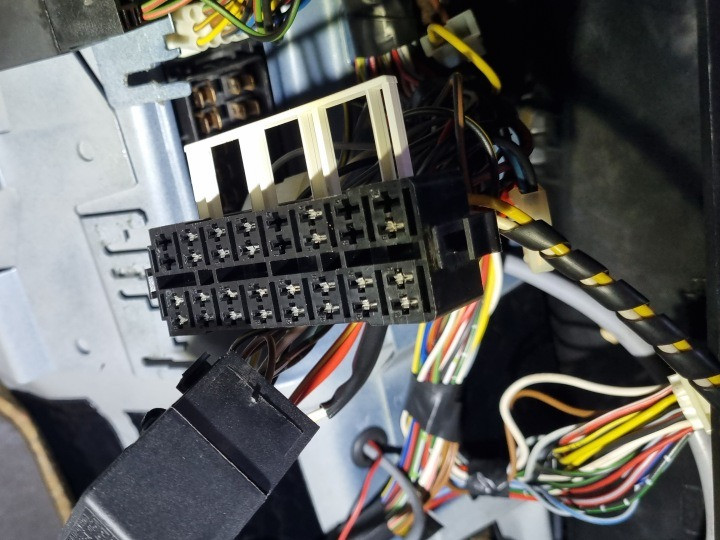

VAG Connectors Pins & Sockets


Recommended Posts

nige8021

Here's some part numbers you might find useful

Audipins.pdf

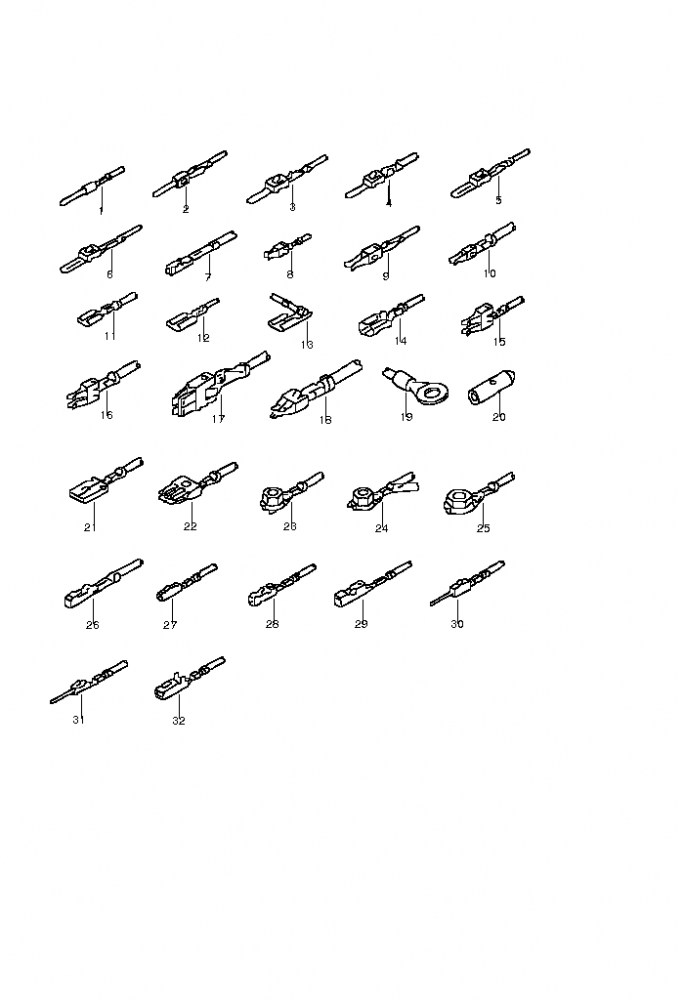

post-36925-0-36897200-1457366558_thumb.p

1 000979133




1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat contact
1,0 2,8 /

2 000979132





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector with retaining lug
1,0 1,5 /

3 000979134





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector with retaining lug
1,0 2,8 /

(3) 000979129





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector with retaining lug
1,0 2,8 /

4 000979219





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector with retaining lug
2,5 2,8 /

(4) 000979226





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector with retaining lug
2,5 2,8 /

5 000979228





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector with retaining lug
2,5 4,8 /

6 000979136





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector with retaining lug
1,0 4,8 /

(6) 000979307





1 set: single wires each with 2 contacts, qty. 4 per bag 'order unit 4' / flat connector with retaining lug
4,0 4,8 /

7 000979002





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector/sleeve with retaining lug
0,5 0,63 /

8 000979133A




1 set: single wires each with 2 gold plated contacts. qty. 5 per bag 'order unit 5' / flat contact
1,0 2,8 /

9 000979131




1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat contact
1,0 1,5 /

(9) 000979131A




1 set: single wires each with 2 gold plated contacts. qty. 5 per bag 'order unit 5' / flat contact
1,0 1,5 /

10 000979225




1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat contact
2,5 2,8 /

11 000979204





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector/sleeve with retaining lug
2,5 6,3 /

12 000979106




1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector/sleeve
1,0 2,8 /

(12) 000979107





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector/sleeve with retaining lug
1,0 6,3 /

13 000979143




1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / angled connector
1,0 4,8 / 1,0

(13) 000979207




1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / angled connector
2,5 6,3 /

14 000979212





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector/sleeve with retaining lug
2,5 6,3 /

15 000979135





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat contact with retaining lug
1,0 4,8 /

16 000979227





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat contact with retaining lug
2,5 4,8 /

17 000979406




1 set: single wires each with 2 contacts, qty. 3 per bag 'order unit 3' / flat contact
6,0 9,5 /

18 000979306





1 set: single wires each with 2 contacts, qty. 4 per bag 'order unit 4' / flat contact with retaining lug
4,0 4,8 /

19 111971947B

cable shoe
A6,0 /

(19) 111971949B

cable shoe
A6 /

(19) N 0175262

cable shoe
6,0 /

20 8A0972980A

cyl. connector with solder pin
27,5X5X3,5 / 1,0-2,5

21 000979411




1 set: single wires each with 2 contacts, qty. 3 per bag 'order unit 3' / flat contact
6,0 9,5 /

22 000979412




1 set: single wires each with 2 contacts, qty. 3 per bag 'order unit 3' / flat contact
6,0 9,5 /

23 000979413






1 set: single wires each with 2 contacts, qty. 3 per bag 'order unit 3' / cable shoe / (screw connection) / impact profile
6,0 A6,0/M6 left /

24 000979414






1 set: single wires each with 2 contacts, qty. 3 per bag 'order unit 3' / cable shoe / (screw connection) / impact profile
6,0 A6,0/M6 right /

25 000979415





1 set: single wires each with 2 contacts, qty. 3 per bag 'order unit 3' / cable shoe / (screw connection)
6,0 A6,0/M8 /

26 000979003A





1 set: single wires each with 2 gold plated contacts. qty. 5 per bag 'order unit 5' / flat connector/sleeve with retaining lug
0,5 0,63 /

27 000979009





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector/sleeve with retaining lug
0,5 0,63 /

28 000979010





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector/sleeve with retaining lug
0,5 0,63 /

(28) 000979010A





1 set: single wires each with 2 gold plated contacts. qty. 5 per bag 'order unit 5' / flat connector/sleeve with retaining lug
0,5 0,63 /

29 000979011






1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector/sleeve with retaining lug
0,5 0,63 /

30 000979012





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat connector with retaining lug
0,5 0,63 /

31 000979015A





1 set: single wires each with 2 gold plated contacts. qty. 5 per bag 'order unit 5' / flat connector with retaining lug
0,5 0,63 /

32 000979028





1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat contact with retaining lug
0,5 2,9 /

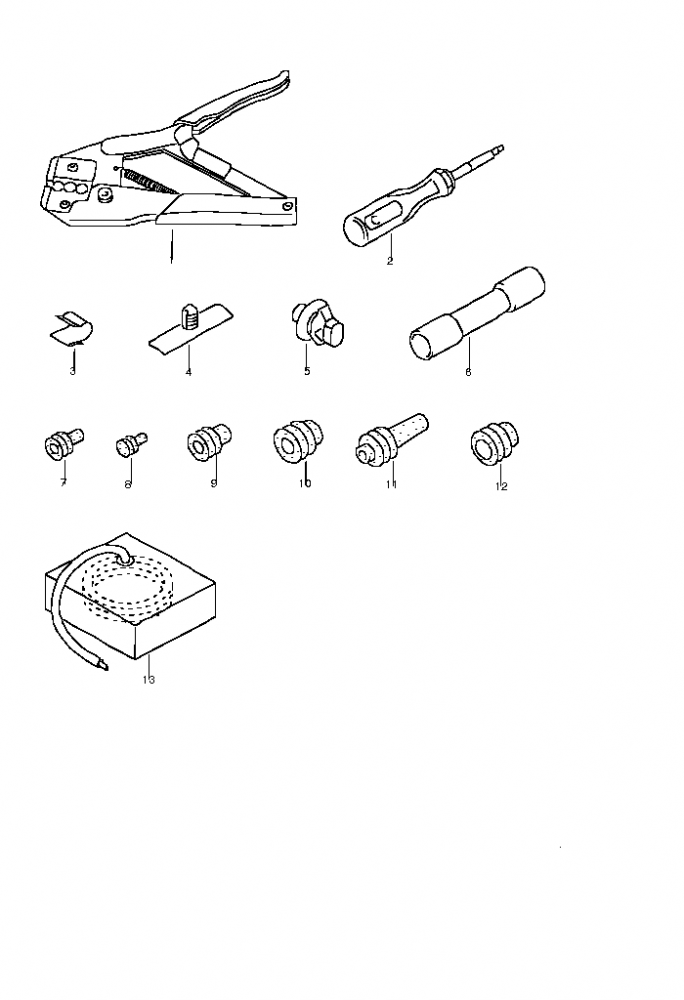

post-36925-0-28018800-1457366689_thumb.p

1 000097014

crimping pliers without insert
/

2

obtain from service/ workshop equipment
/

3 111971939A

cable terminal
/

4 4B0971848

cable holder
6MM /

5 N 10400901

clip
/

- N 10401001

cable holder
/

6 111971940A

butt connector, watertight, can be welded
0,5-1,0 red /

(6) 111971939B

butt connector, watertight, can be welded
blue 1,5-2,5 /

(6) 111971938A

butt connector, watertight, can be welded
yellow 4.0-6,0 /

7 357972740D


single wiring seal / for cable:
3,9X7,8 1,2-2,0MM light grey /

8 4B0972840

plug
4,0X7,8 white /

9 357972741


single wiring seal / for wire cross section:
5,6X7,8 blue 1,0 /

(9) 357972741A


single wiring seal / for wire cross section:
5,6X7,8 red 1,5 /

(9) 357972741B


single wiring seal / for wire cross section:
5,6X7,8 yellow orange 2,5 /

(9) 357972742C


single wiring seal / for wire cross section:
9,0X7,8 green 4,0 /

10 357972742A


single wiring seal / for wire cross section:
9,0X7,8 white 1,5 /

(10) 357972742B


single wiring seal / for wire cross section:
9,0X7,8 red 2,5 /

11 357972743


single wiring seal / for wire cross section:
9,0X23,5 blue 1,5 /

12 357972842

plug
9,0 black /

(13) 000979980

electric cable in 10m bag
yellow / 0,35QMM

(13) 000979981

electric cable in 10m bag
yellow / 0,5QMM

(13) 000979982

electric cable in 10m bag
yellow / 1,0QMM

(13) 000979982B

electric cable in 3m bag -high temperature resis.-
yellow / 1,0QMM

(13) 000979983

electric cable in 10m bag
yellow / 1,5QMM

(13) 000979984

electric cable in 10m bag
yellow / 2,5QMM

(13) 000979985

electric cable in 5m bag
yellow / 4,0QMM

(13) 000979986

electric cable in 5m bag
yellow / 6,0QMM

  • Like 4
Link to post
Share on other sites
  • Replies 4
  • Created
  • Last Reply

Top Posters In This Topic

  • nige8021

    2

  • Christian6N

    2

  • Dave9n3

    1

Top Posters In This Topic

Popular Posts

Here's some part numbers you might find useful Audipins.pdf 1 000979133 1 set: single wires each with 2 contacts, qty. 5 per bag 'order unit 5' / flat contact 1,0 2,8 / 2 000979132 1

Lol, these single pins you already can get for ages @VW. They are normal parts in the etka. I got them straight from my local dealer since the beginning of this century. Using them for repairing wir

A source for genuine VAG connectors http://www.ebaystores.co.uk/3-Way-Components/VAG-Connectors-/_i.html?rt=nc&_fsub=7298004011&_sid=59531901&_trksid=p4634.c0.m14.l1581&amp

Posted Images

Christian6N

Lol, these single pins you already can get for ages @VW.
They are normal parts in the etka.

I got them straight from my local dealer since the beginning of this century.

Using them for repairing wirelooms and even when i build a complete wireloom myself, for aftermarked Stuff or 3rd party equiptment.


and even the sealant rubbers for making the sockets real waterproofed.


These you can collect when you slaught a loom for example.

You can get the most usual pins @VW, some others somewhere else in the internet.

Even the non symetrical pins for older VW's you cannot get longer @VW for a couple of years.

Just on repairwires, but thats not an option for me. So better keep searching the web or the right dealers.

Here is what i mean, the left is the current version, the right the old version which you all know, they need also other tools to release out of the socket.


If you have the right presstool, you can keep your VW in original condition even in such small things like connectorsockets with pins......

Thats what i call OEM++++++++++++++++++++++++++++++++++++ in the smallest details you can have.

Nobody sees it, but you know what you have inside the car, under the carpet, in the dashboard and so on......

cheers

Christian

  • Like 1
Link to post
Share on other sites
Christian6N

And you can also, with a bit of searching in the web, find all the original plastictubes with all different distributors in Y and T Form.





For even much more OEM++++++++++++++

cheers

Christian

Link to post
Share on other sites
  • 2 weeks later...

Good work Nige, I used to have to search all over the net for the correct ones/part numbers so I could save paying VW prices
