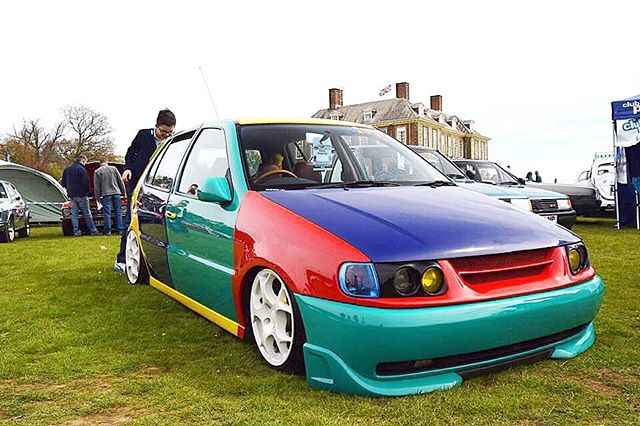

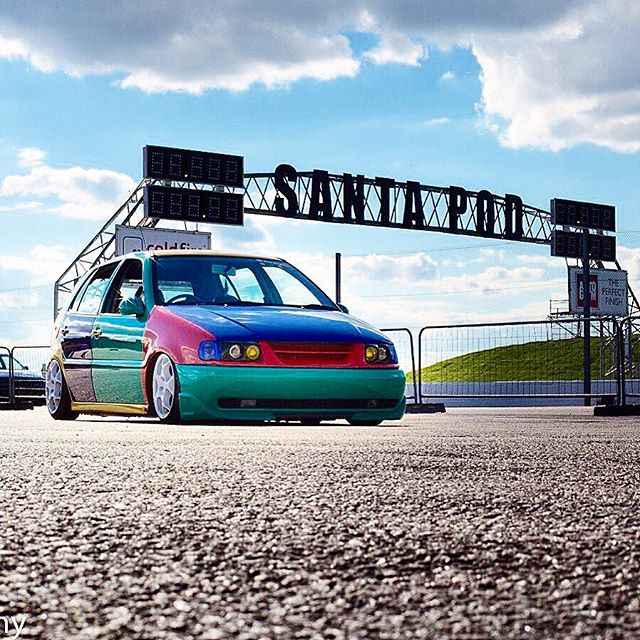

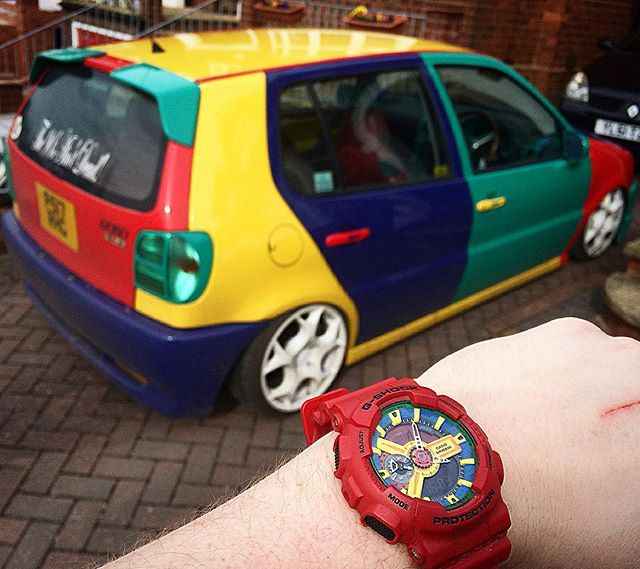

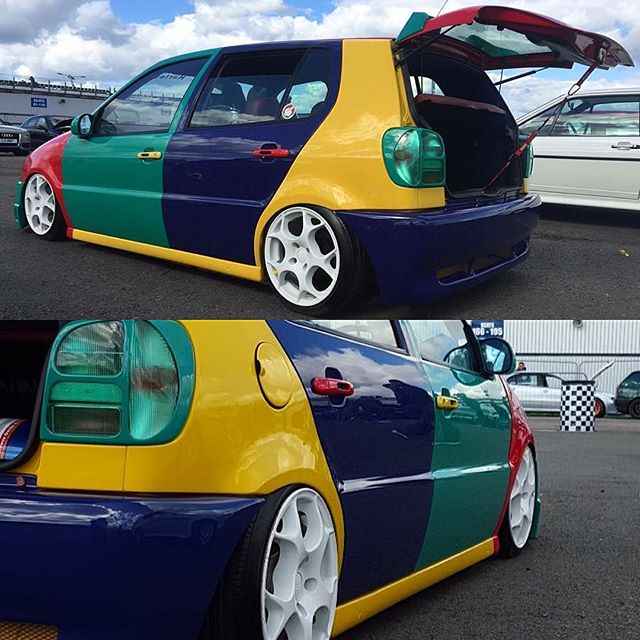

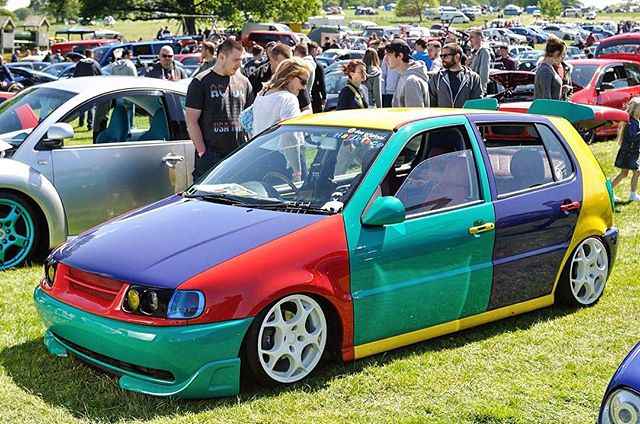

Harlekin rebuild. My resto-mod. This is Harleface

Recommended Posts

BigSexyRob

You may remember my white 6n that I had for almost 7 years, well this is the build thread for my Harlekin that has replaced it.



I'd always wanted one, one of my oldest memories of seeing a car was one of these and after driving Travis' imported one at Polo Social lastyear...I knew I had to find one.



I bought this in July 2015 and it was completed in March 2016.



After talking to a friend of mine, he informed me he knew of one sat on a drive about 6 miles away from my work. I contacted the owner and went down that weekend with money burning a hole in my pocket. I was not leaving without it!! It had spent a chunk of its life been used as the courtesy car for the owners VW specialist business. But the last 4 years of its life had been spent sat on his drive unloved and not going anywhere. Reluctantly on his part, a deal was done (including him personally delivering it to my work) hands were shaken and money was exchanged. This is the story of the build.



Its important to note, that the majority of the work was carried out by myself. My boss did the welding and some of the mechnical. James Shelvey at CEVL Automotive sorted my notch and air ride. Ed Aldridge at Aldridge trimmers did my doorcards and also thanks to Jon Gallant for lending a hand and keeping me motivated over the 8 months it took me.



And also big thanks to my long suffering partner who I put through hell and back.



NOW LETS BEGIN..................



It arrived to me, nicely coated in a thick layer of dirt, mould, moss and grime. It hadn't to my knowledge been started in 4 years, I hooked a battery up and on the second turn of the key it fired into life



SNV15768_zpsffl9wdbe.jpg~original



SNV15769_zpsph8mqfrg.jpg~original



SNV15772_zps3ihac5ad.jpg~original



SNV15773_zpstwpt9odc.jpg~original



SNV15775_zpsn6ilvyiu.jpg~original



SNV15776_zpsdjkp7ofd.jpg~original



SNV15779_zpsviswi8cf.jpg~original



SNV15780_zpsbrmaaaw2.jpg~original



SNV15782_zpstychgxcy.jpg~original



SNV15781_zpspucjca56.jpg~original



SNV15783_zpsdtkft2f3.jpg~original



SNV15798_zpse3e5sl5b.jpg~original



Under the bonnet wasn't much better



SNV15786_zpsauhsvnvu.jpg~original



SNV15785_zpsfnebwbwq.jpg~original



SNV15789_zpsvwmwhxqb.jpg~original



SNV15787_zps50ib8p8z.jpg~original



The interior was a different story. Ever surface was covered in mold. It was not a nice place to sit



SNV15790_zps9jqv7ayu.jpg~original



SNV15791_zpsghmv7hxx.jpg~original



SNV15793_zps9wdutpub.jpg~original



SNV15792_zps8ko5kz3s.jpg~original



SNV15794_zpsd5ddoby5.jpg~original



SNV15795_zpssprezuzd.jpg~original



SNV15796_zpsmqlq3f3d.jpg~original



SNV15797_zpsqna6k495.jpg~original



My own little fish bowl in the indicator



SNV15800_zpsmphn90g6.jpg~original



Under arches had 105,000 miles worth of dirt stuck to them



SNV15802_zpskamgy0sc.jpg~original



SNV15803_zpsxh5ulexq.jpg~original



SNV15804_zps3b5lzebl.jpg~original



SNV15808_zpsl0un4h2m.jpg~original



After a good going over with plenty of TFR, a pressure washer and some scrubbing. It all didn't come out to bad



SNV15823_zpslth0zi1e.jpg~original



SNV15822_zpsbasrzxyf.jpg~original



SNV15810_zpsm0oxkrwo.jpg~original



SNV15809_zpsbzcu7oui.jpg~original



SNV15812_zps7wexalbt.jpg~original



SNV15811_zpsqfiqn7qx.jpg~original



SNV15814_zpshmzhe0la.jpg~original



SNV15815_zpshveja96y.jpg~original



SNV15829_zps5f3wadun.jpg~original



SNV15830_zpspmthizzy.jpg~original



All the stickers off



SNV15835_zpsdzacq3q6.jpg~original



SNV15837_zps1dnaot8g.jpg~original



SNV15836_zpsmin5hgmm.jpg~original



SNV15839_zps8c1hdtyb.jpg~original



SNV15841_zpsmrifr0xg.jpg~original



SNV15842_zps22f0pcos.jpg~original



Scabby sills and scabby arches and a very poor attempt of a blow in on the roof



SNV15844_zps7zucqu41.jpg~original



SNV15843_zpsrvpycjm2.jpg~original



SNV15846_zpsjtjfermm.jpg~original



SNV15845_zpsmj4ikbzn.jpg~original



SNV15847_zpsml0kbban.jpg~original



SNV15850_zpsxtogyezz.jpg~original



First on the list was to give it a service



SNV15855_zpsvvdswmj4.jpg~original



SNV15857_zpsek92vl0h.jpg~original



The sump plug was giving us aggrovation. It was just turned in the hole. So out with the impact gun and air chisel



SNV15858_zpszpkmyyfc.jpg~original



New Vs. Old



SNV15861_zpsidjpdvqk.jpg~original



SNV15862_zpsqf1tmldk.jpg~original



The first replacement panels arrived. Two brand new sills



SNV15865_zpsfdfpakik.jpg~original



SNV15866_zps88ku5zex.jpg~original



These were masked and a coat of epoxy was put on both the inside and outside



SNV15870_zpsqvk8cj7w.jpg~original



SNV15871_zpsujrsnzot.jpg~original



SNV15872_zpsc6qyeyar.jpg~original



SNV15874_zpslj2vcmox.jpg~original



Then came the partial strip down.



SNV15880_zpsrntmlulq.jpg~original



SNV15881_zpsr2b6wn6t.jpg~original



Back outside where I could pressure wash the inner front arches and back panel



SNV15884_zpsbxmy3o9k.jpg~original



SNV15885_zpseuowvkip.jpg~original



Which all looked pretty solid



SNV15892_zpsqthwk5rw.jpg~original



SNV15898_zpsryhunbov.jpg~original



SNV15902_zpsebo8ncf8.jpg~original



SNV15904_zpsdotvagmi.jpg~original



I made a start addressing any rust/filler repairs to the drivers side doors



SNV15915_zpspwus2mw2.jpg~original



SNV15918_zpsswnewqg4.jpg~original



SNV15919_zpstbdop9wb.jpg~original



SNV15917_zps3akfexy4.jpg~original



SNV15921_zpsqscm4qrn.jpg~original



I coated the rusted areas in a phophated rust inhibitor to prevent it coming back



SNV15924_zpsgi6ahv9q.jpg~original



One back door repaired. It had been subject to minor accident damage so required quite abit of filler



SNV15925_zpsietmtcsn.jpg~original



The front door was peppered with car park dings, so a full skim of filler was the easiest option



SNV15927_zpsdtjfydqc.jpg~original



SNV15928_zpstozsixmt.jpg~original



Into the booth for some high build primer



SNV15931_zpstq39zssl.jpg~original



SNV15935_zpsqj6qtzps.jpg~original



Finally after waiting for them to arrive for 6 weeks, the replacement rear arches turned up



SNV15938_zps0rczmnjp.jpg~original



These to were masked and epoxy primed inside and out



SNV15947_zpsqmjr1zwc.jpg~original



SNV15950_zps7ptichsm.jpg~original



A trip to my local breakers gained me a passenger rear door to replace the rotten one I had and full set of door rubbers, as the original ones had perished



SNV15945_zpsqrlkveha.jpg~original



Cleaned up the backs of the wings and the spare replacement I had



SNV15957_zpsrgfdo5nb.jpg~original



I made a start on rolling one of the front wings, until I realised it was rotten and full of filler. This wouldn't do, so I knew this one would need replacing aswell



SNV15964_zpsmsbf2enn.jpg~original



SNV15963_zpsmt8rlgqr.jpg~original



SNV15967_zpsri93xcz8.jpg~original



So another trip to the breakers got another front wing and another back door to replace the damaged one I'd already repaired



SNV15969_zpsm2n3ecyo.jpg~original



SNV15970_zpswc2sozlx.jpg~original



Fully stripped out



SNV15976_zpslvvtburs.jpg~original



SNV15977_zpstfel4xea.jpg~original



I marked up the rear door handles to get them made like the fronts I already had



SNV15980_zpsevwnxexm.jpg~original



SNV15981_zpsfrzxdmsx.jpg~original



SNV16038_zpsayrelrcs.jpg~original



SNV16050_zpss63cuydr.jpg~original



With two solid arches, I set about getting them ready



Lips flattened



SNV15986_zpsmmhzrjtz.jpg~original



SNV15988_zpsa1ljwbgw.jpg~original



Side repeaters delete



SNV15998_zpswy7rbc1h.jpg~original



SNV16002_zpshtk0u6nw.jpg~original



SNV16005_zps9ugrj6oh.jpg~original



I'm not much of a welder, I'll stick to what I know best



SNV16007_zpsbnal35da.jpg~original



All filled



SNV16026_zpsc6ywzk1p.jpg~original



SNV16027_zps2hpdpfi7.jpg~original



Now the fun starts. I can't weld, so that task was left to my boss



SNV15982_zps57yvzezv.jpg~original



SNV15983_zpspiqmweca.jpg~original



The sills and arches had seen better days



SNV15991_zpswsnajcaz.jpg~original



SNV15992_zpstwrwi8ca.jpg~original



SNV15993_zpsjagqlfyu.jpg~original



My boss made a start removing the old



SNV15995_zpsxcxgjt2f.jpg~original



Surprisingly solid inside



SNV15997_zpssalublsr.jpg~original



Hand full of sealer where there should be metal



SNV16012_zpsixijonip.jpg~original



Coat of stone chip on the inside of the new sill



SNV16016_zpsotatj7xx.jpg~original



Old sill completely removed



SNV16018_zpsuzmi9m6a.jpg~original



Masked up. A coat of weld through primer was applied to the edges, a coat of stone chip and painted yellow. To give as much rust protection as possible



SNV16019_zpsarhjpnfi.jpg~original



SNV16020_zpsgr8fedfg.jpg~original



SNV16023_zpsq68ep8yk.jpg~original



SNV16025_zpsow3aqpam.jpg~original



One new sill MIG and spot welded on



SNV16030_zps4clupikv.jpg~original



SNV16031_zpsemsholvj.jpg~original



Off with the rotten arch



SNV16042_zpswqsri8xq.jpg~original



SNV16045_zpsx0clplqh.jpg~original



SNV16053_zpscwd2t9la.jpg~original



The void left by the rotten end plate



SNV16052_zpspf2q6cq7.jpg~original



And repaired



SNV16056_zpsrcedkgbq.jpg~original



New arch fully welded on



SNV16066_zpsr9wj2gjm.jpg~original



SNV16068_zpsqxhxle24.jpg~original



Even spot welded the trimmed inner arch to the outer. Thats now this side rust free



SNV16070_zpsqikpgh4u.jpg~original



Wings and door handles went in for some primer (etch and high build)



SNV16060_zps0iqgiart.jpg~original



SNV16061_zpshachents.jpg~original



SNV16063_zpsnqosjdaz.jpg~original



SNV16064_zpsll6ocsvl.jpg~original



SNV16065_zpsgqkdoxnb.jpg~original



Now onto the passenger side



SNV16072_zpscxokvn9c.jpg~original



Same rotten story here aswell



SNV16075_zpslcjmpf9j.jpg~original



SNV16078_zpsh7kqvsug.jpg~original



SNV16077_zpswukkotmo.jpg~original



SNV16080_zps9mbbfbhy.jpg~original



SNV16084_zpskykx7a3t.jpg~original



Off with the old



SNV16085_zpszx6lq4bp.jpg~original



SNV16091_zpst1yk2hv5.jpg~original



This end plate was full of sealer aswell



SNV16092_zpsvkqgiey1.jpg~original



Both replacement back doors filled and repaired



SNV16094_zpssjj6mmw6.jpg~original



SNV16095_zps8yl8nn8r.jpg~original



SNV16096_zpsluvrhpfi.jpg~original



SNV16100_zpsmuehrewa.jpg~original



SNV16102_zpsbjy1nhwn.jpg~original



The inner lip was missing, so that was repaired



SNV16097_zpssenhungq.jpg~original



SNV16098_zpseqf86eah.jpg~original



Replacement passenger sill stonechipped internally and same process to inner sill



SNV16104_zpssae2onpp.jpg~original



SNV16107_zpstntljhgs.jpg~original



SNV16109_zpskkuv9mpi.jpg~original



SNV16111_zpsmixg0ihs.jpg~original



New sill end section made



SNV16113_zps5yqa0cst.jpg~original



SNV16114_zpslj4x2v6m.jpg~original



And sill welded on



SNV16119_zps0i8vcsdx.jpg~original



SNV16123_zpspyr19ak3.jpg~original



SNV16124_zpsg2t4e4vr.jpg~original



Lower rear corner repaired



SNV16126_zpsko5slbto.jpg~original



Time to repair the Hofeles, one was damaged years ago before I got them and the repair had become weak and snapped



SNV16117_zpsfgbyp5kr.jpg~original



SNV16121_zpspgvqmz1i.jpg~original



SNV16120_zps3bpylkbg.jpg~original



SNV16122_zpsx9auzts5.jpg~original



WIngs given a block throgh for a reprime



SNV16127_zps7kzemviw.jpg~original



Wheels swapped over



SNV16130_zps5bjwisro.jpg~original



SNV16131_zps0yeii7zj.jpg~original



Back doors in for a prime along with the wings, door handles, ABT splitters and Hofeles



SNV16133_zpsgqoro7ua.jpg~original



SNV16134_zpsg5797az4.jpg~original



SNV16136_zpseacgfe92.jpg~original



SNV16138_zpssrq2xnif.jpg~original



SNV16141_zpstrgyjskq.jpg~original



All done



SNV16142_zpsqoof6gfl.jpg~original



SNV16143_zpslkkkixrt.jpg~original



SNV16148_zpsljfh4viw.jpg~original



SNV16147_zpse8bopb7y.jpg~original



Replacement passenger arch replaced



SNV16154_zpss7dnsoxy.jpg~original



Both arches got rolled and fully seam sealed at this point



SNV16155_zpsqpvr25sn.jpg~original



SNV16157_zpsm8e0rmth.jpg~original



SNV16159_zpshvs51pea.jpg~original



SNV16158_zpszvldqkfx.jpg~original



SNV16162_zpsskjcudwo.jpg~original



SNV16163_zpsdewskkg0.jpg~original



SNV16164_zpsthyeljle.jpg~original



SNV16166_zpsewsyixaf.jpg~original



While I was waiting on booth space, I made time to do a few more mechanical jobs that I'd forgotten. New fuel filter, pollen filter and coolant flush



SNV16169_zpsp4pmou15.jpg~original



SNV16171_zpszs9jbkft.jpg~original



SNV16172_zpsoggeqkfg.jpg~original



SNV16174_zpsyproju78.jpg~original



SNV16173_zpsqrolvm1z.jpg~original



SNV16177_zpsoqqk7go1.jpg~original



I also had a fuel leak, which I'd noticed for a while but not been able to find (dangerous when your welding) tracked it back to the fuel line in the engine bay which was missing its clip



SNV16184_zpseho1zdrx.jpg~original



SNV16188_zps5w3fiwp2.jpg~original



SNV16189_zpsxu6osf9j.jpg~original



Time for more filler work. Passenger side getting the treatment



SNV16193_zpsizw5diag.jpg~original



SNV16194_zpszlvt71m2.jpg~original



SNV16195_zpsqvdqw22q.jpg~original



SNV16198_zpso0tklzcz.jpg~original



SNV16199_zpsk3gfugiy.jpg~original



SNV16200_zpstotijsgc.jpg~original



SNV16202_zpskl3gpc1v.jpg~original



Fast forward to the following weekend and the drivers side got the same



SNV16204_zpswrfetjds.jpg~original



SNV16203_zpsl42hucgc.jpg~original



SNV16208_zps2ks05hps.jpg~original



SNV16210_zps3vmfcy1v.jpg~original



SNV16212_zpsff6alin1.jpg~original



With christmas rapidly approaching, which would be the deadline date for me to paint it. I finally got round to the roof



SNV16215_zpsljvezicx.jpg~original



SNV16216_zpsokv05vgy.jpg~original



While I was waiting on filler to dry, I also got the last door prepped for primer



SNV16217_zps7jse6w2d.jpg~original



SNV16220_zpsgg7a4tzx.jpg~original



SNV16223_zpsq1l2iwpb.jpg~original



SNV16221_zps6copsca6.jpg~original



SNV16226_zps0zn18tyn.jpg~original



I blocked both 1/4 panels through to give them a second prime



SNV16228_zpsir68ggjx.jpg~original



SNV16229_zpssfieq1ua.jpg~original



SNV16230_zpsa2skroih.jpg~original



SNV16234_zpsgs3zjr0b.jpg~original



SNV16235_zpsrrknqzib.jpg~original



SNV16237_zpsvjro6h4t.jpg~original



SNV16239_zpsf0nwhuhk.jpg~original



TODAYS THE DAY!!!!!!!!!!!!!!!!!!!!!!!!!!!



The day that put alot of strain on mine and my partners relationship...................



Today is christmas eve and I'm at work repainting the car



Fully unpanelled



SNV16241_zps4zjn2mwz.jpg~original



Guide coat applied and fully flatted all over



SNV16243_zpsx96ekzir.jpg~original



Once prepped and cleaned it saw the booth



SNV16245_zpsbjlpdicp.jpg~original



Masked



SNV16248_zpsykojwbnl.jpg~original



SNV16250_zpssjj3i7ej.jpg~original



SNV16249_zps6ewmpizi.jpg~original



I then seam sealed the edges and appertures and masked it for stone chip



SNV16251_zpskiowpngb.jpg~original



SNV16252_zpsxoypfff6.jpg~original



SNV16253_zpsnrghot0g.jpg~original



SNV16255_zpsczcip6zx.jpg~original



SNV16257_zps7bxuwc3b.jpg~original



SNV16258_zpsofukbkmz.jpg~original



One final clean and were ready to go



SNV16263_zpsddxvhwln.jpg~original



SNV16261_zpsjou6zinq.jpg~original



SNV16264_zpsipthljsw.jpg~original



By this point, it was 6pm. I'd been working nonstop since 7am on my own and I was going a little bit mad



SNV16265_zps95dsgu0y.jpg~original



Nice spot of Ginster Yellow



SNV16268_zpseonnqchw.jpg~original



And all painted



SNV16269_zpsyfgdxjdn.jpg~original



SNV16270_zpshtapyafv.jpg~original



SNV16271_zpsdxqaz1qp.jpg~original



SNV16272_zpspxsftvy1.jpg~original



SNV16273_zpsm5nmcyjl.jpg~original



SNV16274_zpsnfgnb48r.jpg~original



SNV16276_zpspv4iqtaf.jpg~original



SNV16277_zpsrfvakws8.jpg~original



The face of a broken, exhausted man after pulling a 13hr day on christmas eve whilst my family and missus were in the pub



SNV16281_zps6abn4bnd.jpg~original



With christmas out the way, I was back in the day after boxing day to carry on



The ABT spoilers i managed to track down got a coat of primer



SNV16282_zpsd3hv5k2k.jpg~original



SNV16284_zpsfcwbqizm.jpg~original



SNV16287_zpso9eukn0r.jpg~original



The front arch lips and the back of the welded up side repeater got seam sealed



SNV16289_zpstdyskmpb.jpg~original



SNV16288_zpsh7kq3hq7.jpg~original



NOW FOR SOME RED!!



Bottoms of the wings and the lips got stone chipped



SNV16291_zpscnai4jck.jpg~original



SNV16290_zpsh2uwnzdn.jpg~original



SNV16293_zps7ltybzqq.jpg~original



SNV16292_zpsppdcypov.jpg~original



Rear door handles, Jap spec boot lid and Oettinger grill all in aswell



SNV16297_zps1om77s6l.jpg~original



SNV16296_zpsorfholug.jpg~original



SNV16298_zpsbr8otk8j.jpg~original



SNV16299_zpslo8lgoou.jpg~original



SNV16300_zpsqgaivvbd.jpg~original



MMMM flash red



SNV16301_zpszbiwq9yz.jpg~original



SNV16303_zps2oysewlr.jpg~original



SNV16304_zpswt3thq8j.jpg~original



SNV16305_zpshphbbgd5.jpg~original



SNV16307_zpsuld9agrm.jpg~original



SNV16308_zpsljsn3uif.jpg~original



SNV16310_zpsfarcgzl8.jpg~original



The next day the boot lid was dry enough to fit



SNV16311_zpslx9c8xcc.jpg~original



NOW FOR SOME PISTACHIO!!



The ABT spoilers, splitters, DTM mirrors, Hofele rear light covers and front doors were all prepped and set up in the booth



SNV16313_zps0jmyzvam.jpg~original



SNV16315_zpsp8a7gtkh.jpg~original



SNV16318_zpse4rf2r4h.jpg~original



SNV16314_zpslgzi8ek6.jpg~original



SNV16317_zpswvcql2jh.jpg~original



SNV16320_zpsri1wywvq.jpg~original



MMMM pistachio



SNV16321_zpsya7sqllg.jpg~original



SNV16323_zpszqbbzers.jpg~original



SNV16324_zpsauuslwow.jpg~original



SNV16327_zpstsmry5yt.jpg~original



SNV16326_zpsmtby4ddx.jpg~original



SNV16330_zps6395ytcn.jpg~original



SNV16331_zpsxfxtq8lq.jpg~original



SNV16332_zpsviatcwsy.jpg~original



SNV16328_zpsfhqtz4w7.jpg~original



So with that all out the way and another new day. More booth action



Front door handles set up to be painted Ginster yellow and the Dietrich RS2 back bumper and back doors put in for some Chagall blue



SNV16333_zpscoor9yft.jpg~original



SNV16335_zpsq5rlmj4x.jpg~original



SNV16336_zps2tu0d4eh.jpg~original



SNV16338_zpsi5p7kugj.jpg~original


MMM chagall blue



SNV16339_zpshcdz81vn.jpg~original



SNV16343_zpsb5kzal0z.jpg~original



SNV16344_zpswytc4bxq.jpg~original



SNV16345_zpsahod7rkp.jpg~original



SNV16346_zpsa9yvqrtw.jpg~original



SNV16347_zpscvuji3r1.jpg~original



SNV16348_zpssulhvz3p.jpg~original



And the front door handles in yellow



SNV16342_zpsohvtvwqp.jpg~original



I then spent what time I had getting the car repaneled. Doors rebuilt and fitted, boot lid on and green Hella magic colours on etc



SNV16353_zpsabrenn5d.jpg~original



SNV16354_zpscp81no5w.jpg~original



SNV16355_zps5abphgy0.jpg~original



SNV16357_zpsf5pfiwk4.jpg~original



After getting a replacement bonnet that I wasn't happy with, my last solution was to use the one off my white 6n



SNV16359_zpsd5f8qmvz.jpg~original



Some minor repairs to the front from where it had been pushed shut over the years



SNV16360_zpsknhnr2qw.jpg~original



Custom front bumper repaired and prepped



SNV16362_zpsknadmiro.jpg~original



Inside of the bonnet done



SNV16361_zps4ryouwju.jpg~original



All set in the booth, the bonnet and bumper will be high build primed and the inside of the bonnet will be wet on wet primed and painted Chagall blue, whilst the Hofeles will get a coat of gloss black



SNV16364_zpstswgmis7.jpg~original



SNV16363_zpse6opyjt1.jpg~original



SNV16367_zpscgytpocd.jpg~original



SNV16366_zpsosb3lqcl.jpg~original



SNV16369_zpscc09llmw.jpg~original



SNV16371_zps6rknvafu.jpg~original



SNV16370_zpsm9nmzbme.jpg~original



SNV16373_zps3moe648z.jpg~original



SNV16374_zpsq8sbnjna.jpg~original



Later on that night, I wrapped the side lights on the Hofeles yellow and refitted the cases



SNV16375_zpsldmytuap.jpg~original



SNV16377_zpsnmdbf8mg.jpg~original



SNV16380_zpsy4ugrsz0.jpg~original



Another day and more paintwork. This time more pistachio. The front bumper and a whole array of dash trim were prepped and set up



SNV16381_zpscklnzaky.jpg~original



SNV16382_zpshq17xvau.jpg~original



SNV16383_zpsrbfcvkpz.jpg~original



SNV16384_zps4ytxypno.jpg~original



SNV16387_zpscrtxbilz.jpg~original



SNV16386_zpsxdq4rlwb.jpg~original



SNV16388_zps9gschbmj.jpg~original



SNV16390_zpshyhycl2i.jpg~original



SNV16391_zpsh2snwu9l.jpg~original



Excuse the dusty interior. Once fitted I knew I had to do the clock surround aswell



SNV16397_zpsfro6obus.jpg~original



This was a sad day, but also a joyous day. My friend James Shelvey from CEVL Automotive came and collected the Harlekin. A few days previous the white 6n had left me to have the air ride removed. It will come back as a different car



SNV16398_zpswjo58wp8.jpg~original



In the mean time, I got round to painting the bonnet



SNV16400_zpsqm6gobz6.jpg~original



SNV16401_zpskzu8txxr.jpg~original



SNV16403_zpsom89yfsp.jpg~original



SNV16405_zpsizq8vdjy.jpg~original



A couple of weeks past and my dreams came true. Shelvey at CEVL dropped the car off freshly chassis notched and bagged



SNV16407_zpsqfi4nwv6.jpg~original



SNV16408_zpstfevledc.jpg~original



SNV16410_zpspapcvzix.jpg~original



I'd gone this far and done so much in the way of rust prevention, it would only be rude not to do the inner arches. They were all prepped and masked for a coating of stonechip and yellow



SNV16413_zpscfvv6bmt.jpg~original



SNV16411_zpsz68x4jk4.jpg~original



SNV16415_zpss0hjnhq7.jpg~original



SNV16417_zpssjx1vy2a.jpg~original



SNV16418_zpsgcosjlye.jpg~original



SNV16420_zpshyykhm0u.jpg~original



SNV16419_zps0e7wxwdl.jpg~original



SNV16422_zpshsys2eal.jpg~original



SNV16424_zps3wspupub.jpg~original



Whilst that was drying, I got the clock surround in and painted



SNV16425_zpshb3rqhng.jpg~original



SNV16427_zps46bul9z9.jpg~original



Freshly Ginstered arches



SNV16429_zpsyhyt6t1t.jpg~original



SNV16428_zpsgyr0fo7q.jpg~original



SNV16431_zpsghelrdpk.jpg~original



SNV16433_zpsqpvwykm0.jpg~original



Bonnet got a flat and polish



SNV16436_zps2jlpbpwm.jpg~original



SNV16438_zpszucqkepq.jpg~original



As did the wings



SNV16442_zpsg3j6xltz.jpg~original



SNV16440_zpsk5agoj3z.jpg~original



SNV16443_zps2g4n3ugt.jpg~original



So fresh



SNV16446_zps6wmi082m.jpg~original



Wings fitted



SNV16449_zpsgvm4czcl.jpg~original



Then the shell got a flat and polish (forgot to take pictures of the roof)



SNV16452_zpsj17wtczj.jpg~original



SNV16450_zps1kkv2rbz.jpg~original



SNV16451_zpsws1jjdpp.jpg~original



SNV16455_zpsmo6fodgb.jpg~original



Dietrich bumper got the same treatment and then fitted



SNV16457_zps0uprvyzp.jpg~original



SNV16458_zpsmqhv4t8o.jpg~original



SNV16459_zpshr4mkaul.jpg~original



SNV16461_zpsfonjoitq.jpg~original



SNV16463_zpslm8s4vkr.jpg~original



SNV16462_zpsyhucmqdk.jpg~original



Time for more mechanical to break things up a little. The brakes were shot, so all new all round including brand new calipers



SNV16465_zpsfzsfcqq0.jpg~original



SNV16464_zpskgvdajwp.jpg~original



SNV16466_zpse1ufvmoe.jpg~original



SNV16467_zps80j1y47e.jpg~original



SNV16468_zpso2lllguu.jpg~original



SNV16469_zpsgs3ifirk.jpg~original



I then went mad and refitted the whole front end of the car and the image I'd had in my head became a reality



SNV16470_zpsi706xctg.jpg~original



SNV16471_zpswughz3t0.jpg~original



SNV16472_zpsp63a6dli.jpg~original



SNV16473_zpsg5t5elbe.jpg~original



I then turned my attention back to the interior and with the help of my long suffering girlfriend, got the headliners and pillars retrimmed in blue suede. With all the mould that was on everything, I replaced the headlining and the pillars



SNV16474_zps305oxxye.jpg~original



SNV16476_zpsmsctpjyl.jpg~original



SNV16477_zpsnug4isol.jpg~original



SNV16485_zpshekls8ek.jpg~original



SNV16489_zpstwbr1fh6.jpg~original



SNV16490_zps8hbpoueq.jpg~original



All fitted in with black grab handles and Golf cabby black sunvisors



SNV16494_zpsze78vpvy.jpg~original



SNV16495_zps7okvj5n2.jpg~original



SNV16496_zpswwsiqwqi.jpg~original



Abit more flat and polishing action



SNV16492_zpsu7gtavxg.jpg~original



SNV16493_zpsbgeblxqt.jpg~original



SNV16480_zpsvv8mmnif.jpg~original



SNV16491_zpszcfoikhg.jpg~original



It was then back up in the air for more mechanical. In trying to take the sump plug out, we actually fractured the side of the pan as it was so rusted. So a brand new sump, gasket and bolt set were fitted



SNV16479_zpsm0gqtcch.jpg~original



SNV16478_zpsnnncv87t.jpg~original



SNV16482_zpsm1zfbi7j.jpg~original



SNV16487_zpswbmj8bpu.jpg~original



6n2 red roof strips went on



SNV16498_zpsse0d7fst.jpg~original



With all the under arch freshness, I couldn't leave the drums



SNV16500_zpsurbfbrkz.jpg~original



SNV16502_zpszhj3mhm4.jpg~original



SNV16503_zpsskl6w76m.jpg~original



Even the filler neck got the treatment



SNV16506_zpsowrdgofh.jpg~original



SNV16508_zpsrypuqrzl.jpg~original



Got the fogs all wired in and working as they should



SNV16510_zpshqnobzy5.jpg~original



I knew all the work myself and my boss had done would go to waste without proper rust proofing. So i spent the money well and ordered up a load of this stuff to pump into everywhere I could get



SNV16512_zpsrwu1ojiw.jpg~original



SNV16514_zps8krmm0ec.jpg~original



SNV16513_zpsxkjphfuq.jpg~original



SNV16515_zpsgxoy01bs.jpg~original



SNV16517_zps7lz5sqva.jpg~original



SNV16518_zpsakopdbv3.jpg~original



I knew I wanted the doorcards to be special. So i sent them to Ed Aldridge at Aldridge trimmers close to me for them to be done



Again, with all the mould, all the doorcards were replaced with new items.

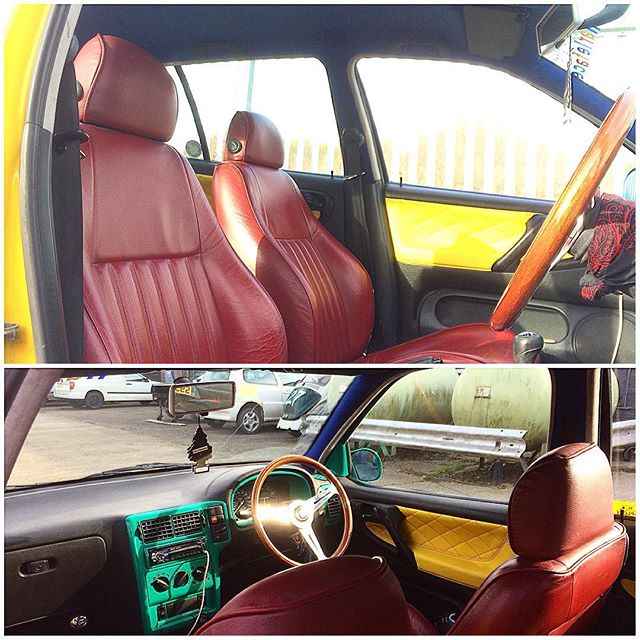

Yellow leather with diamond stitching a different colour on each



SNV16520_zpsk5rqzcxn.jpg~original



SNV16521_zpskv4dyevb.jpg~original



SNV16523_zpsfo6q0ar3.jpg~original



SNV16525_zpsws2l7eey.jpg~original



A brand new old stock Polo badge and replacement Harlekin sticker was sourced



SNV16527_zpsjbjthf98.jpg~original



SNV16529_zps9thtkxdz.jpg~original



Hofele rear light covers fitted



SNV16531_zpsjy1nisrz.jpg~original



ABT spoilers and splitters bonded on



SNV16530_zps2m1tezgx.jpg~original



SNV16532_zpstfvu3y28.jpg~original



SNV16533_zpsuicda7ux.jpg~original



And thats it.



I will update this with some pictures of the car since the work was carried out













Edited by BigSexyRob
  • Like 1

Share this post


Link to post
Share on other sites
BigSexyRob

All about the colour coded G-Shock12976533_486278658230537_486600075_n.jpg

One from Stanford Hall


One from All Types     13277646_2001967020029035_2118366151_n.jpg

Rear fitment sorted with 25mm spacers to sit it on the lip12531079_1718547868423953_1293260520_n.jpg

FInal outcome of the interior. Harle inspired. Red Alfa 147 leathers and diamond stitched parcel shelf, yellow leather cards, blue suede headlining and pillars, Pistachio trim and Nardi steering wheel12965202_1710073525901236_891214209_n.jpg

Ace shot by Travis at GTI springfest where i managed to pick up Top 20 in show


And finally a picture most people have already seen11372163_758977610905695_14190401_n.jpg



  • Like 3

Share this post


Link to post
Share on other sites
madnemo

Looks stunning Rob :wub::wub:  and nice write up too .

Nimal

Share this post


Link to post
Share on other sites
spilz

Amazing work mate, didn't realise how much had gone in to it!



Has the previous owner seen it recently?

Share this post


Link to post
Share on other sites
Dean

Amazing work indeed! Dream car? :tongue:

Can't wait to see this at The Polo Social!!!!!!

Share this post


Link to post
Share on other sites
r10tz0r

Damn, huge amount of work, love it!

Share this post


Link to post
Share on other sites
kiran_182

Alot of work went into that, glad to see you got the car you wanted

Share this post


Link to post
Share on other sites
sean-1989-mk2

stunning build dude, I love the 90's look

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

×
×
  • Create New...

Important Information

We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue. Terms of Use Privacy Policy Guidelines
