Hi Guys!

RCD 200 - current bane of my car life! Finally found the right set of keys to get it out.

It appears to have wiring for rear speakers - does anyone know the pin layout - ie. what pins go to what speaker?

All help will be very well received! :-)

Many Thanks

Robster

thats such a usefull pic

good to show other people

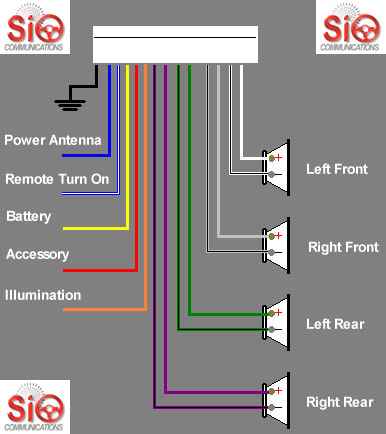

Excellent diagram!

My speaker cables are a slightly different colour - Do the VW headunits get upset if you connect speakers whilst it's on to test which one outputs where?

Doing so on other headunits in the past hasn't caused problems for me!

Many thanks for the help!

someone should add this to faq section cos no end of people post asking bout wiring up stereos!

The 4 outerpins on the ISO block are the rear speakers.
